| Product Model | HZP1600 |
|---|---|
| Max. hanging weight(t) | 1600 |
| span(m) | 50、51 |
| Lifting height of trolley(m) | 56 |
| Rated lifting capacity(t) | 140 |
| Max. working slope | 2％ |
| Max. working transverse slope | 2％ |
| Min. curved radius(m) | 5500 |
| Traveling speed(m/min) | 1 |
| Speed of erection of girder(day/span) | 10 |
| The whole machine power(kw) | 180 |
| The total weight(k) | 750 |

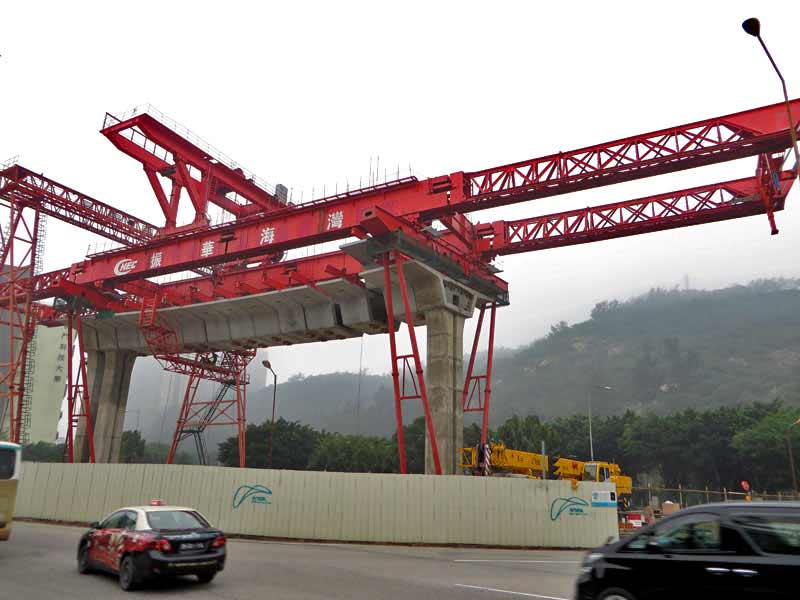

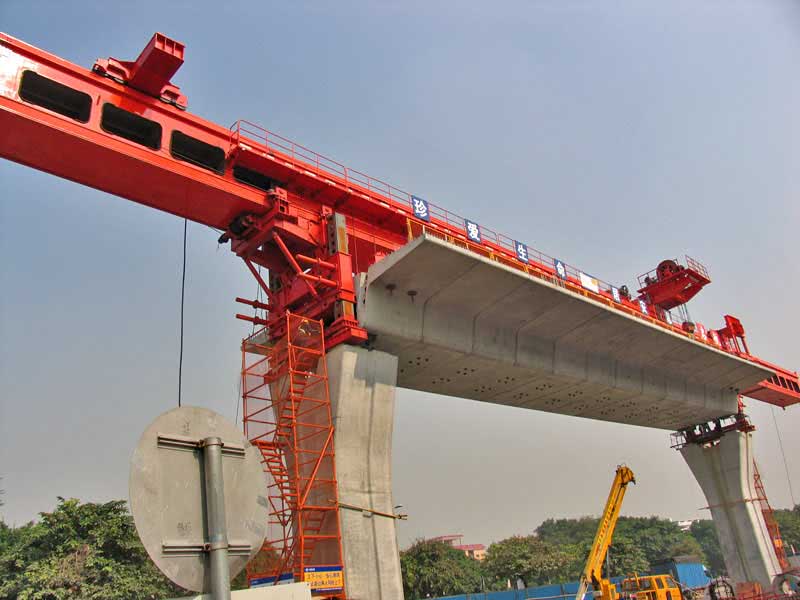

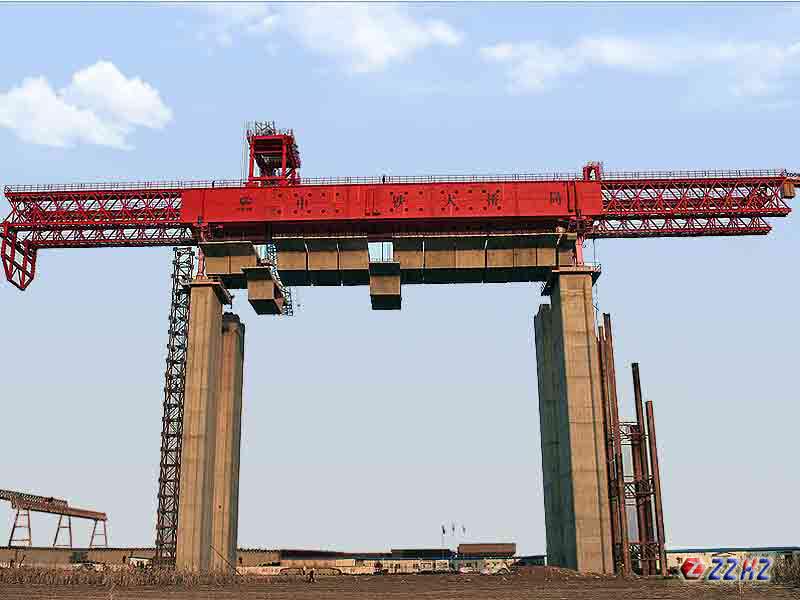

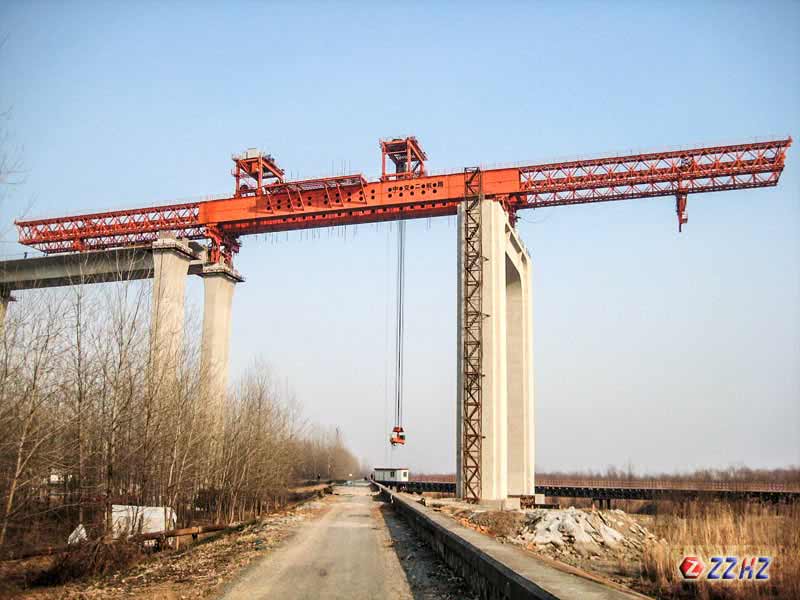

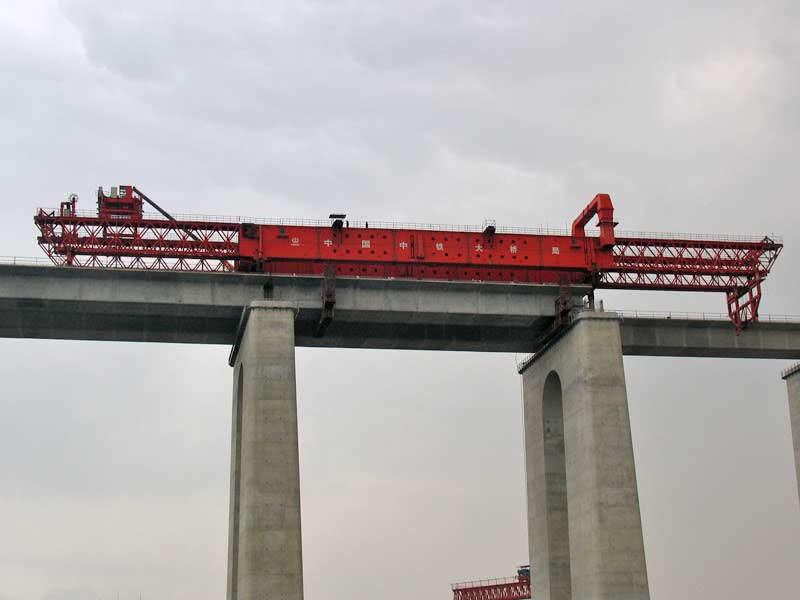

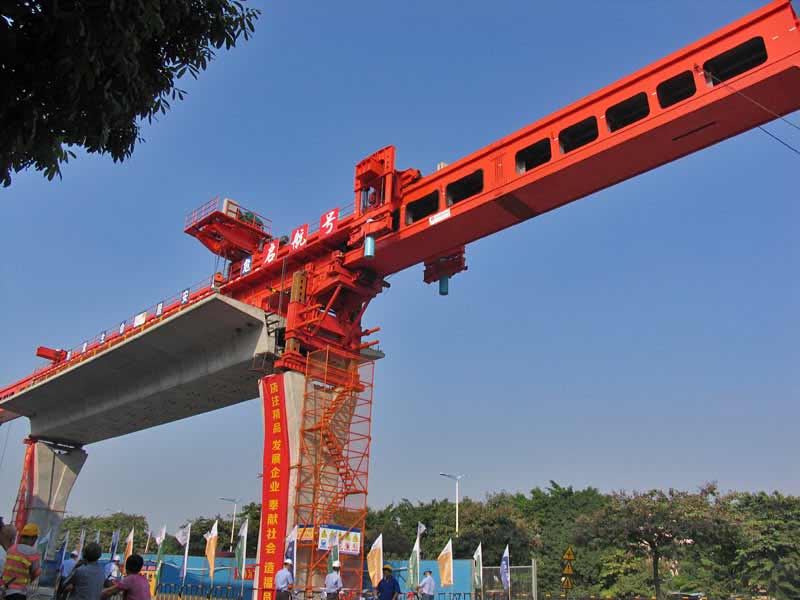

HZP Segment Assembly bridge girder launcher is applied for the large-scaled river-crossing bridge, highway and railway project construction。
1, The main girder is the box type with large load-bearing capacity.
2, The symmetrical design achieves the contruction in two directions.
3, The girder carrier is applied for the long distance transportation.
4, The segments are lifted and glued together firstly, then tensioning to the whole span.
Temperature: -25-+40℃
Click to download the drawing of HZP Segment Assembly bridge girder launcher
