| Product Model | HZY900 |
|---|---|
| Load capacity(t) | 900 |
| Dimension (L x W x H)(m) | 38.6 x 6.95mx 3.4(without cabin) |
| Moving speed Empty load in flat(km/h) | 0-12 |
| Moving speed Heavy load in flat(km/h) | 0-5 |
| Working pressure Heavy load in flat(MPa) | 21 |
| Working pressure Heavy load in climbing(MPa) | 30 |
| Climbing gradient | 5° |
| Min. radius in turning of outside(m) | 38.4 outside |
| Min. radius in turning of inside(m) | 26.3 inside |
| Power(kw) | 2 x 420 |
| Tyre shafts | 16 |
| Tyres | 26.5R25, 16 X 4＝64 |
| Shaft distance(M) | 2.1 |
| Wheel distance(M) | 5.0/1.2 |
| Wheel pressure(MPa) | <0.6 |
| Grounding angle | 8° |
| Off-grounding angle | 13° |
| Self weight(t) | 280 |

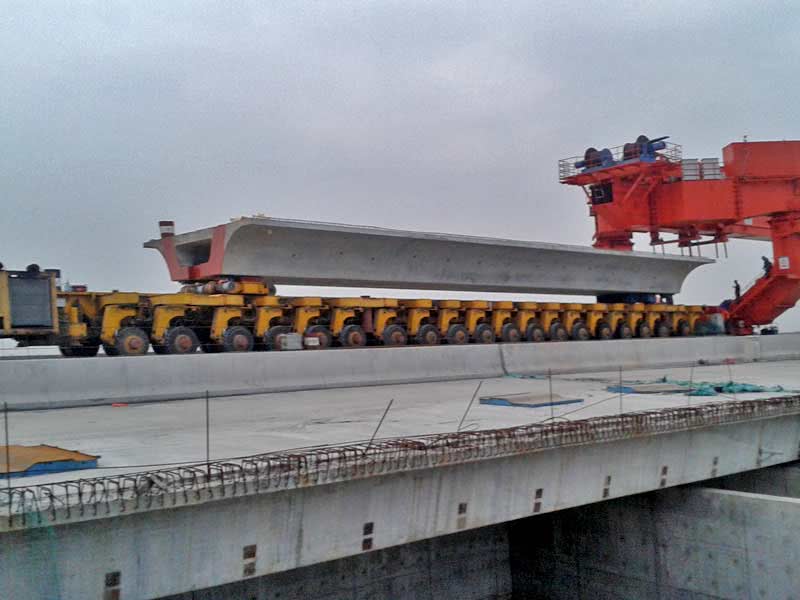

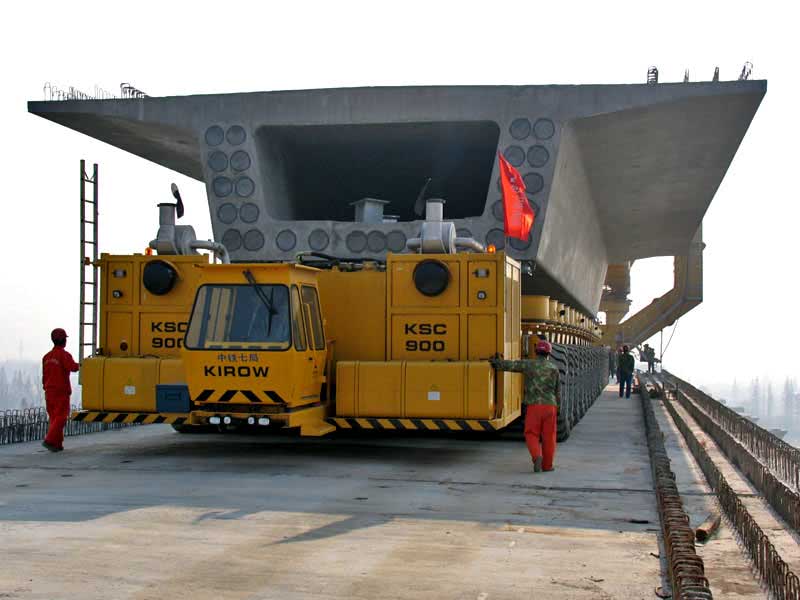

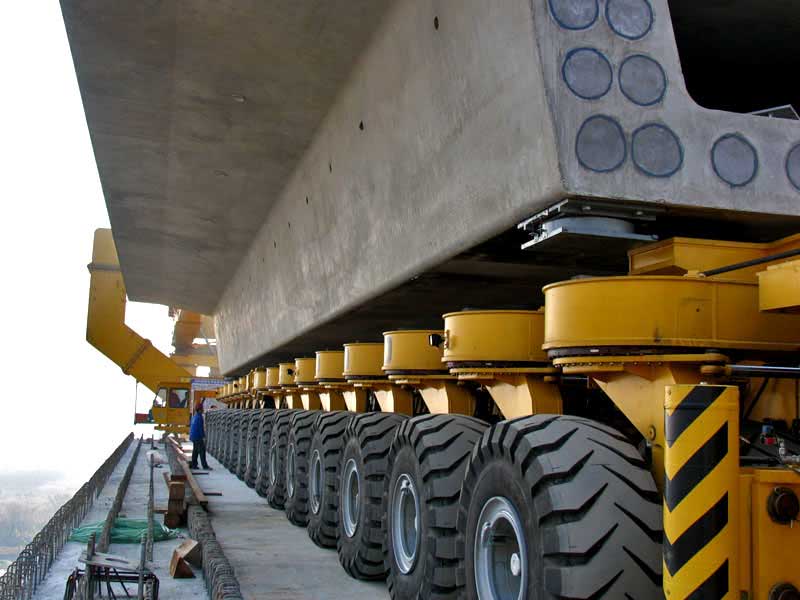

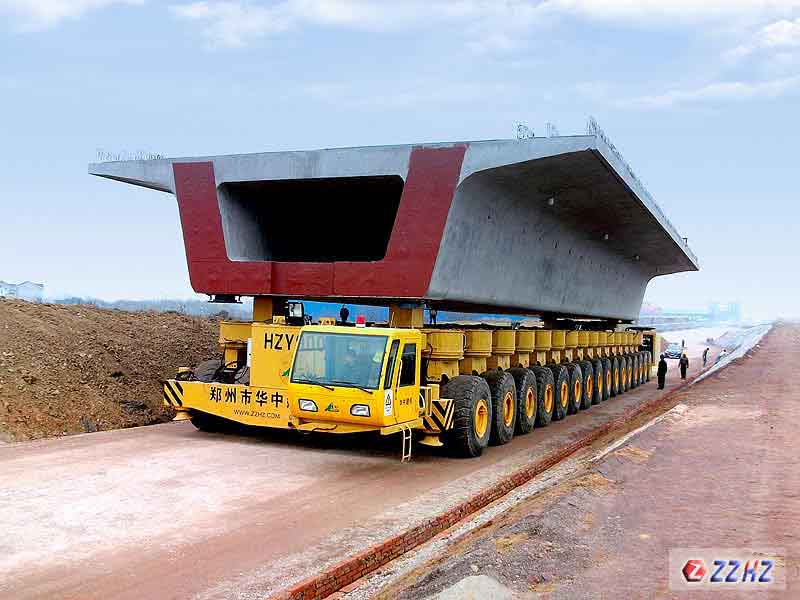

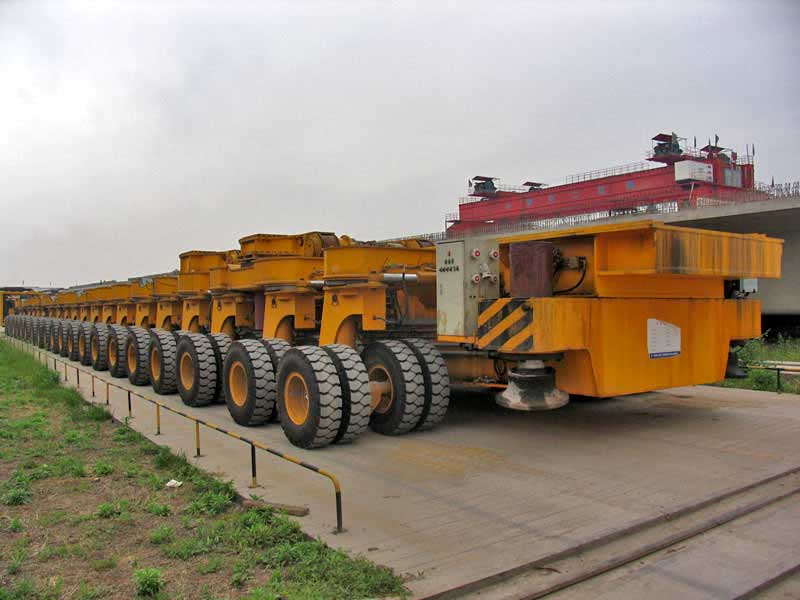

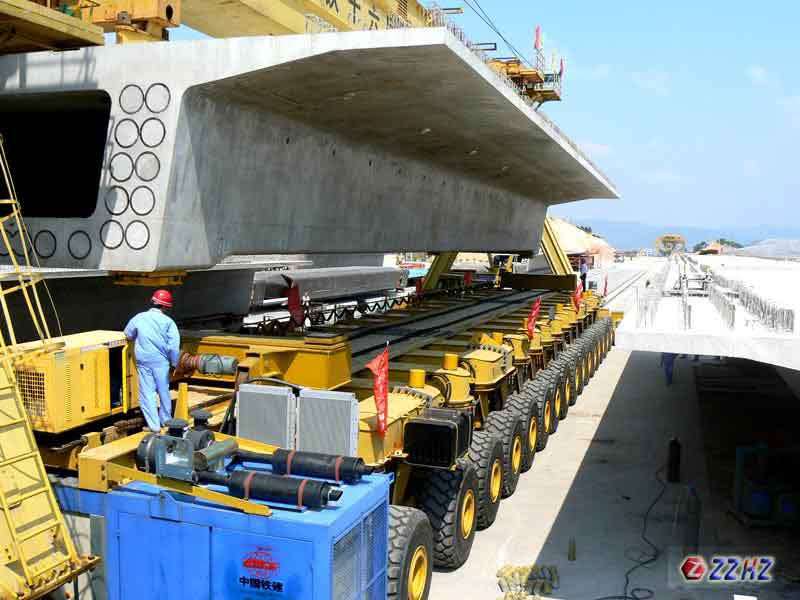

HZY Girder Transporter is the supporting equipment for the high-speed railway bridge girder launcher, adopting the fuel as a driving power. It is mainly for the transportation of concrete girders and used for bridge construction together with the bridge girder launcher.
1. The girder transporter travels smoothly and fast.
2. It is divided into low speed for heavy load and high speed for no load.
3. Two-way driving, remote control operation.
4. The fuel as the power is suitable for long transportation distance.
Temperature: -25-+40℃
Click to download the drawing of Girder Transporter
