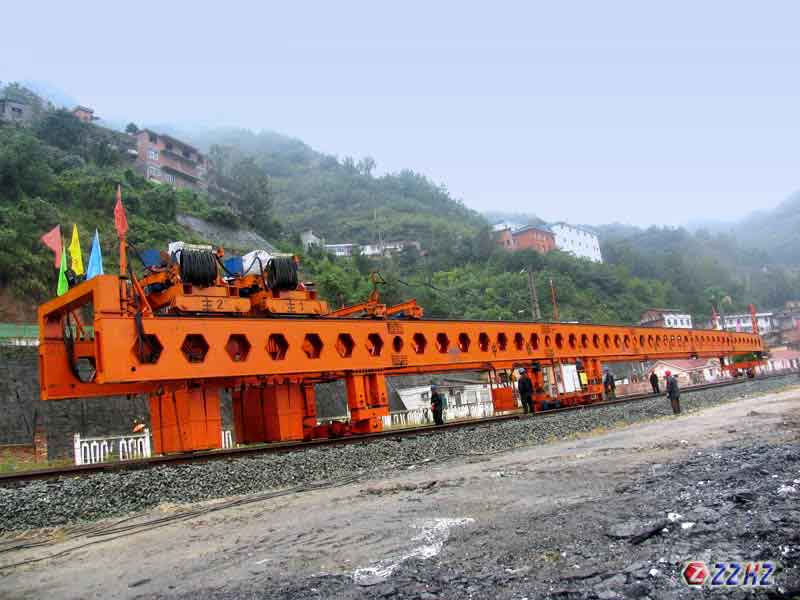

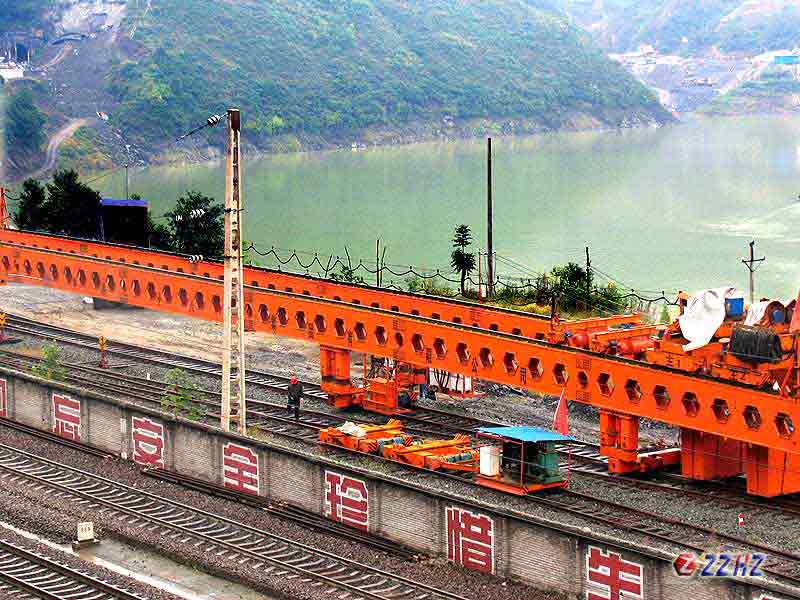

Bridge Erecting Crane for Highway and Railway Projects

With the characteristics of simple structure, light self weight, high automation and self-propelled power, it can travel along the rail in the long distance.
2 pieces of girders every day

Product Model	HZQ32/165T
Span(m)	32
Lifting Capacity(t)	165
Cart Moving Speed(m/min)	4-8
Trolley Moving Speed(m/min)	2.75
Trolley Lifting Speed(m/min)	0.5
Central Distance Between Two Girder(m)	3.4
Machine Gauge(m)	1.435
End Cantilever Deflection(mm)	630
Middle Girder Deflection(mm)	38
Max Wind Force(grade)	≤6
Curvature Radius(m)	≥700
Longitudinal Gradient	≤±2％
Transverse Gradient	≤±2％
Self-weight(t)	160
Power(kw)	150

product description

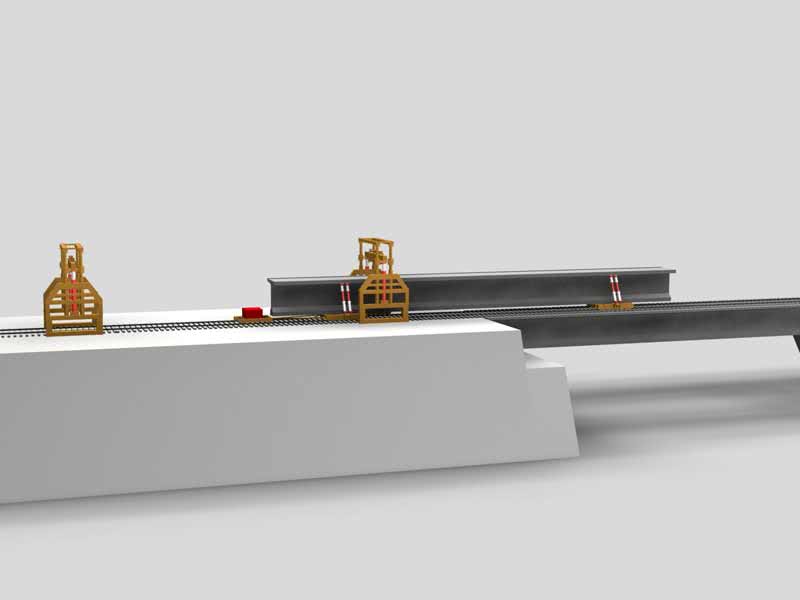

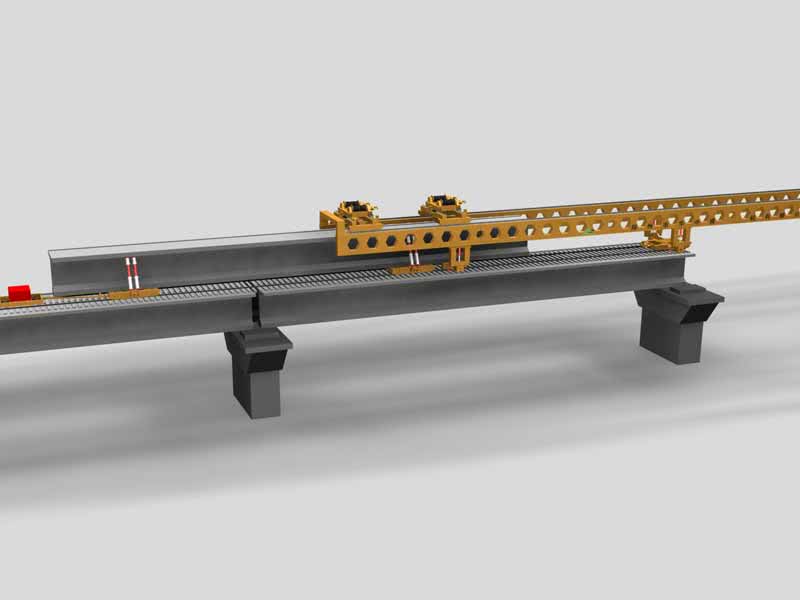

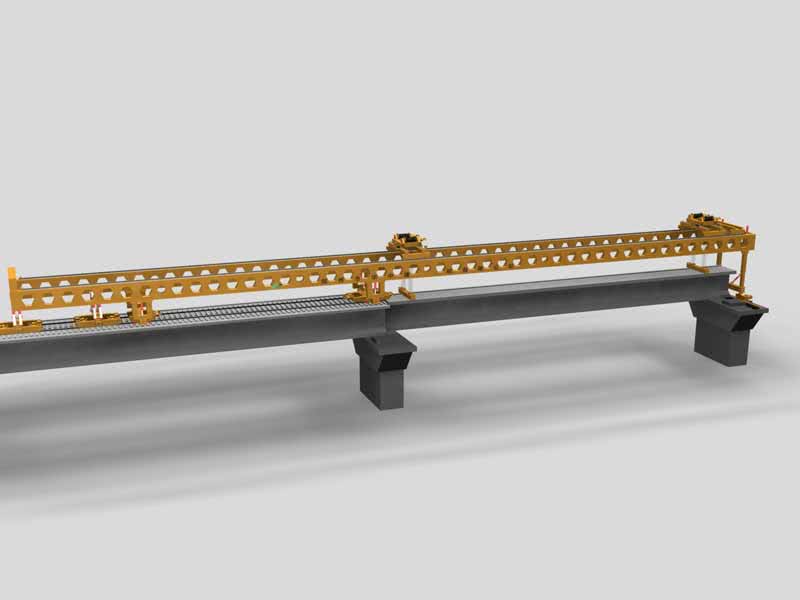

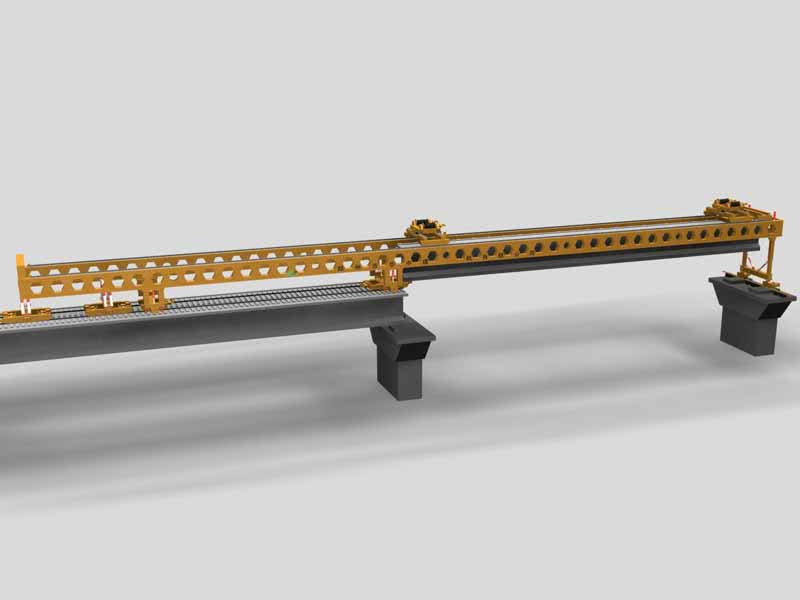

HZQT bridge girder launcher can not only meet the railway project construction, but also the highway project construction.

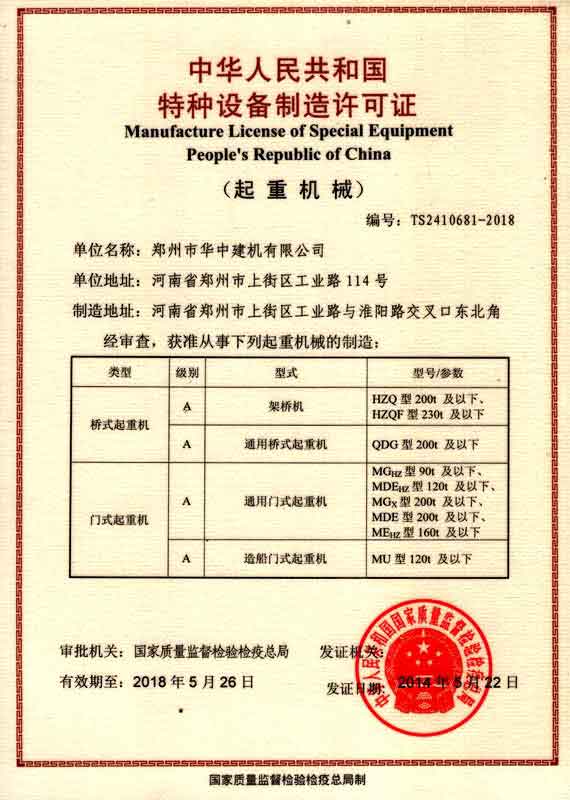

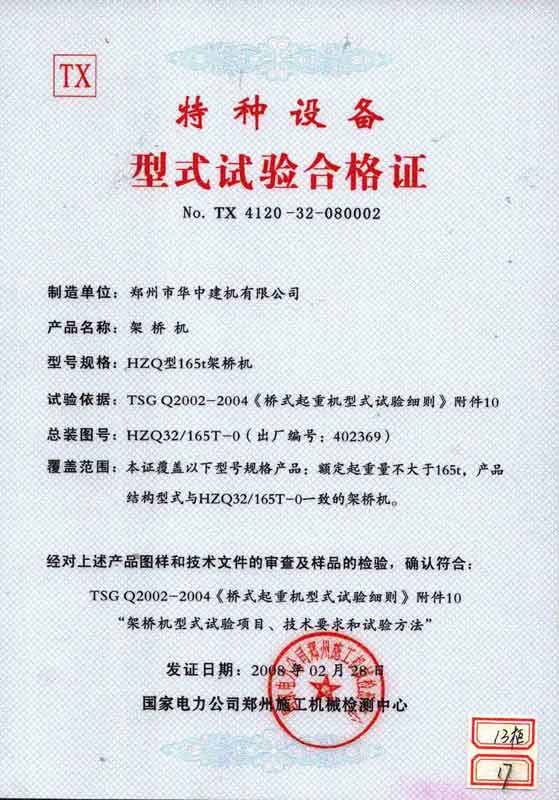

Chinese Government

Product advantages

Because of the self low height of bridge girder launcher, there is no need to dismantle the equipment to make it traveling in the tunnel and lifting the girder outside the tunnel.
