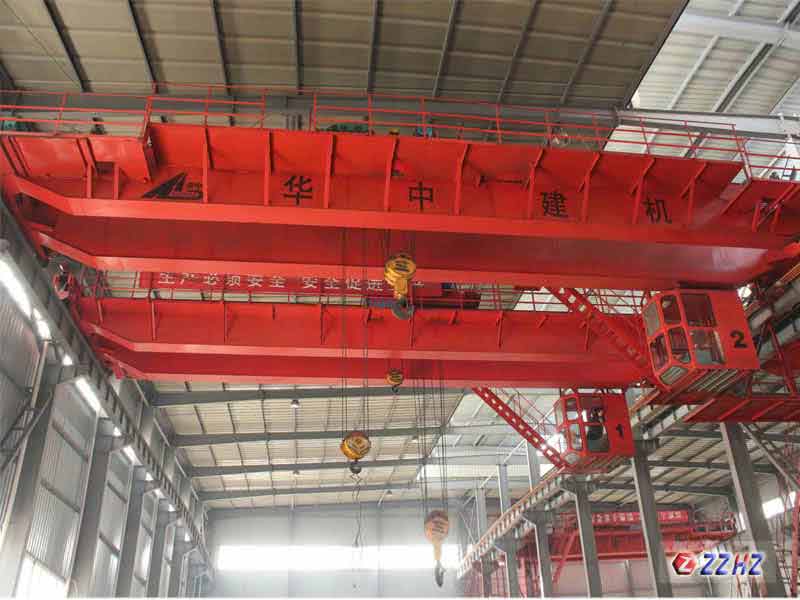

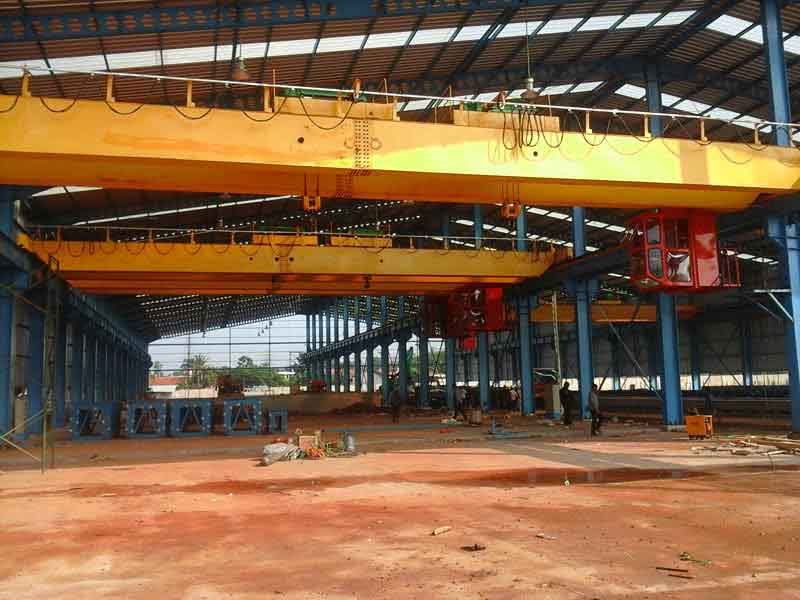

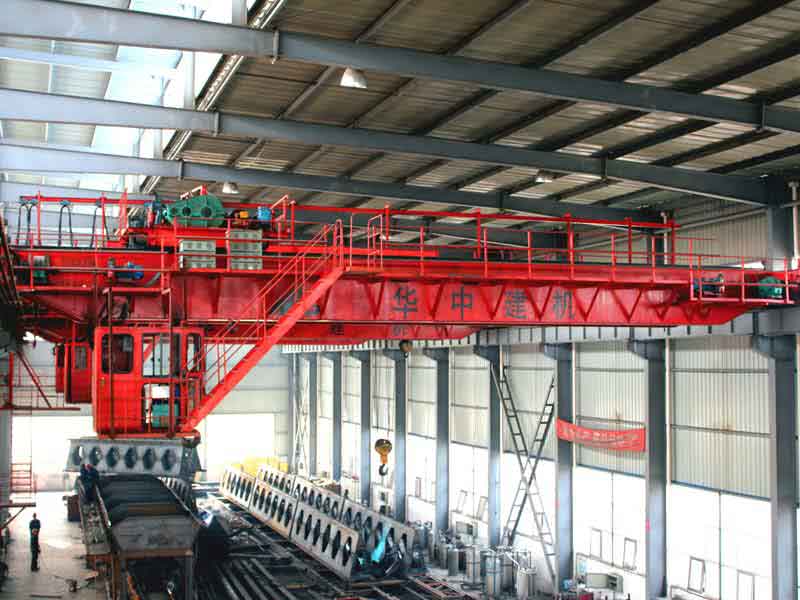

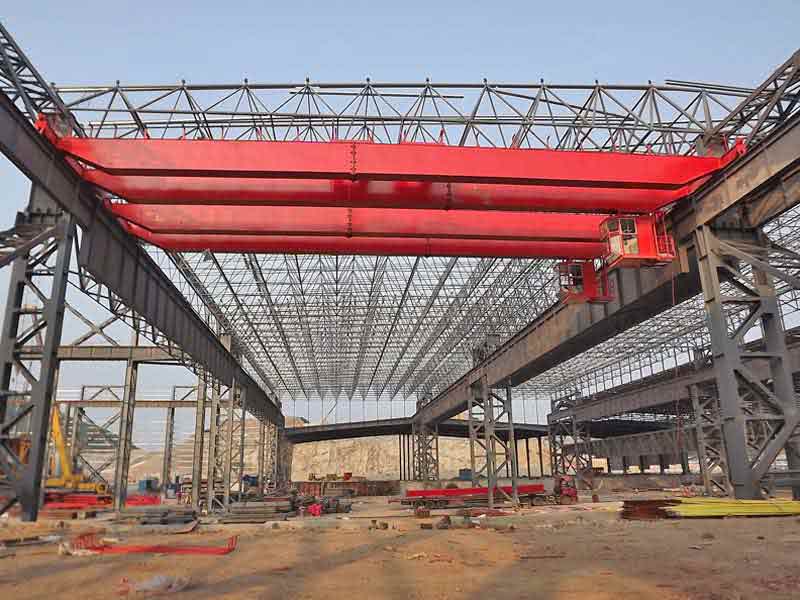

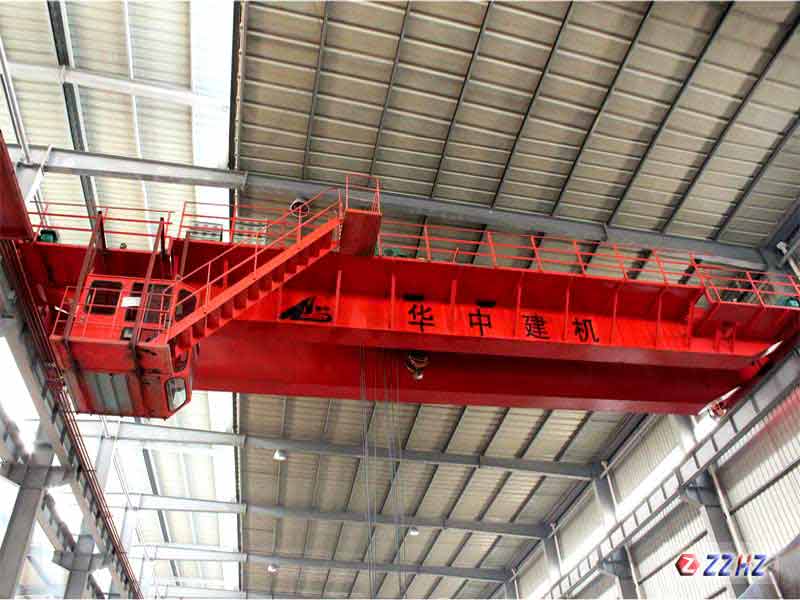

Double Girder Overhead Crane

1. The lifting capacity of overhead crane is high.
2. Equipment occupies a large space.
3. Lifting and traveling speed is fast.

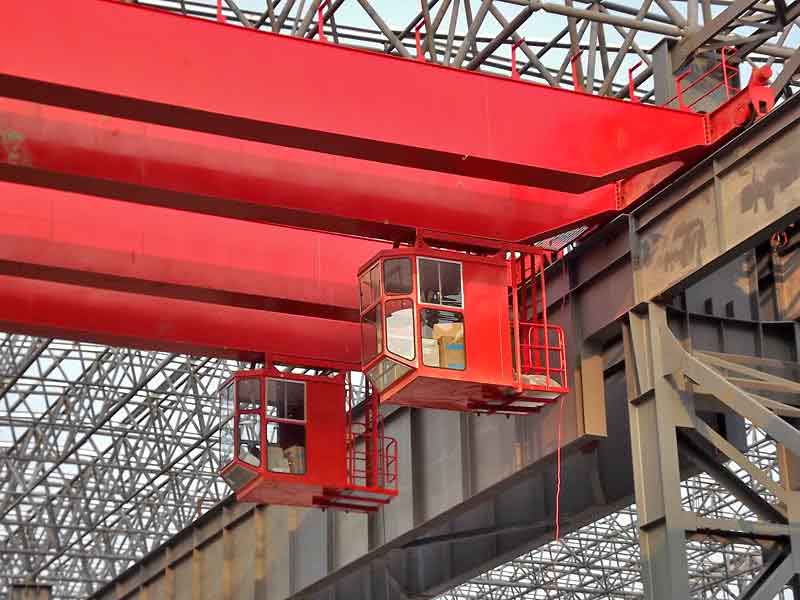

4. Remote operation is very convenient.

Product Model	QD16/3.2	QD20/5	QD32/5	QD50/10
main hook lifting capacity(t)	16	20	32	50
span (m)	10.5-31.5	10.5-31.5	10.5-31.5	10.5-31.5
main hook lifting height (m)	16	12	16	12
auxiliary hook lifting height (m)	18	11	18	16
main hook lifting speed(m/min) A5	7.9	7.2	7.8	5.9
main hook lifting speed (m/min) A6	13	9.7	9.5	7.8
trolley moving speed(m/min)	44.6	44.6	42.4	38.5
auxiliary hook lifting capacity(t)	3.2	5	5	10
auxiliary hook lifting speed (m/min)	14.5	12.7	19.5	13.2
crane moving speed (m/min)A5	84.7	84.7	87.6	74.6
crane moving speed (m/min)A6	12.5	112.5	101.4	86.6
power （Kw）	85	100	120	150

product description

QD Overhead Crane adopts box type double main girder structure. It is mainly used for mines, factories, terminals and warehouses and other frequently operation material handling station.

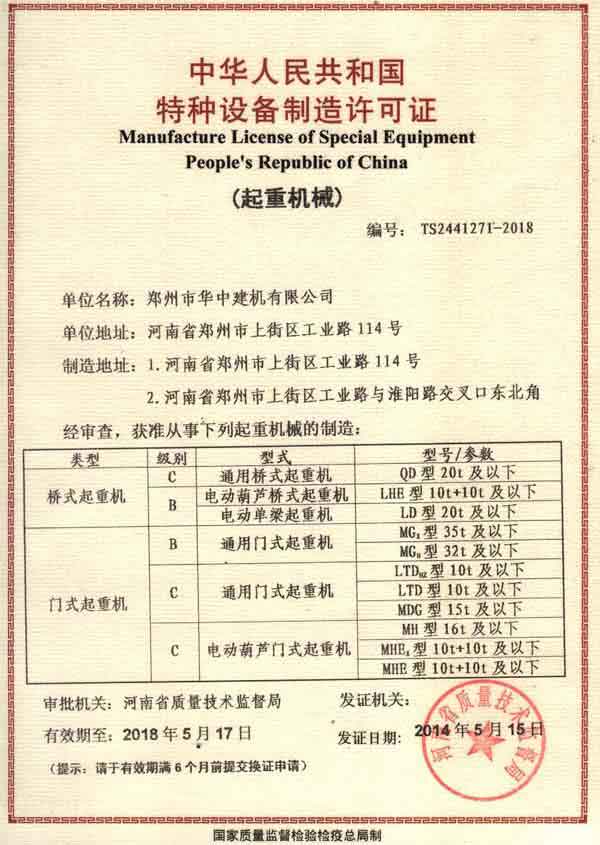

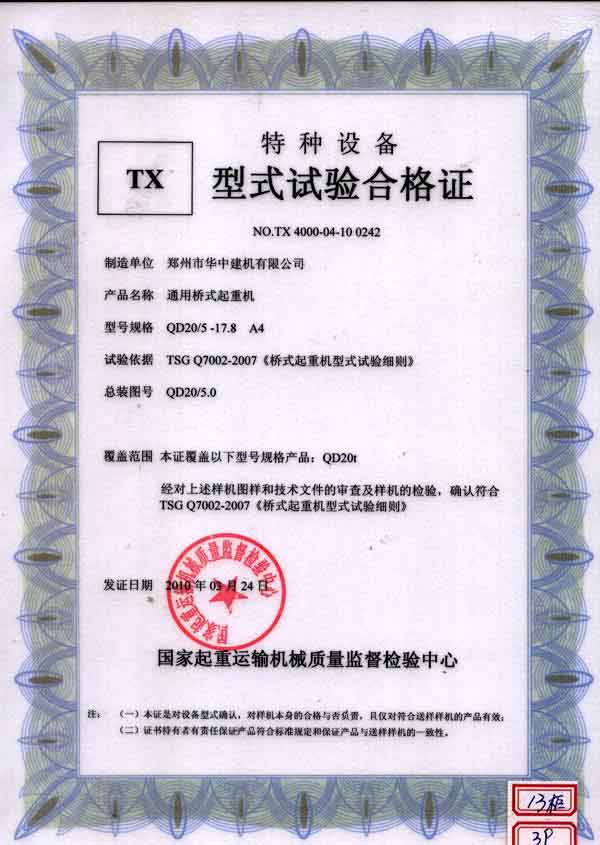

Chinese Government

Product advantages

1. The lifting capacity of overhead crane is high.
2. Equipment occupies a large space.
3. Lifting and traveling speed is fast.
4. Remote operation is very convenient.
