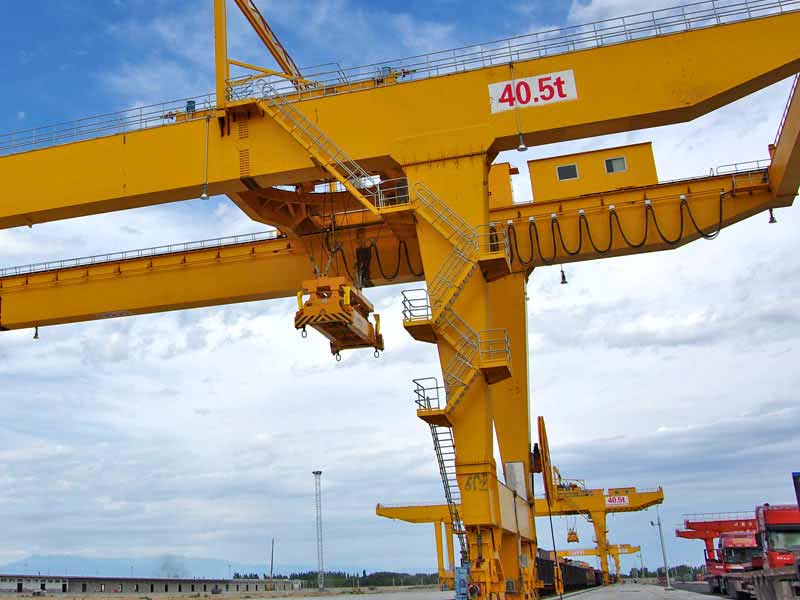

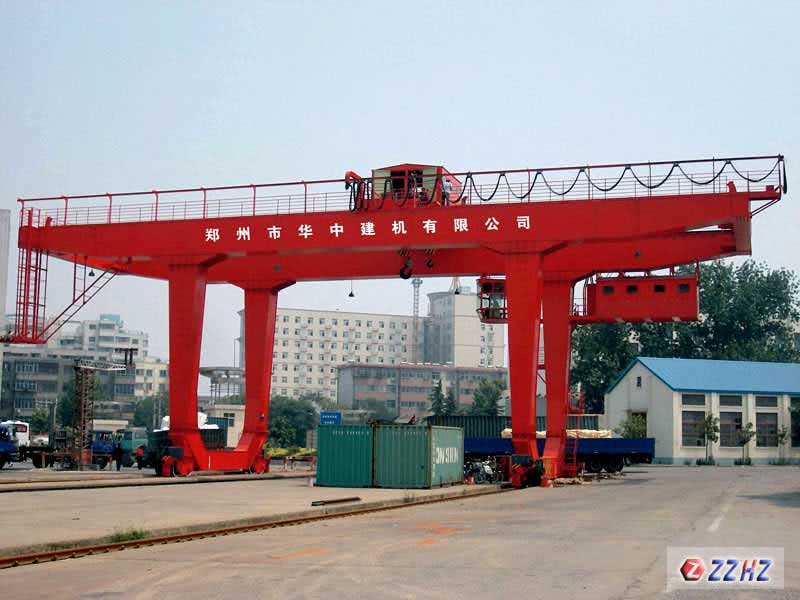

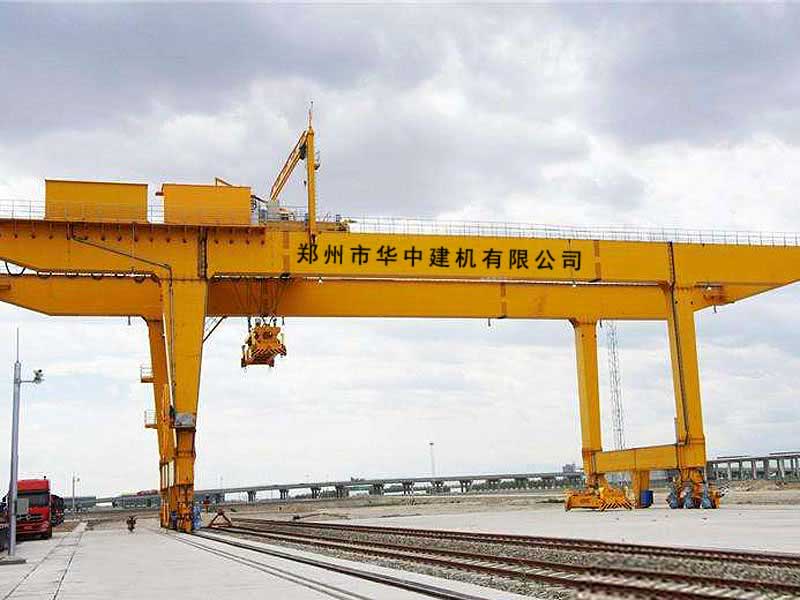

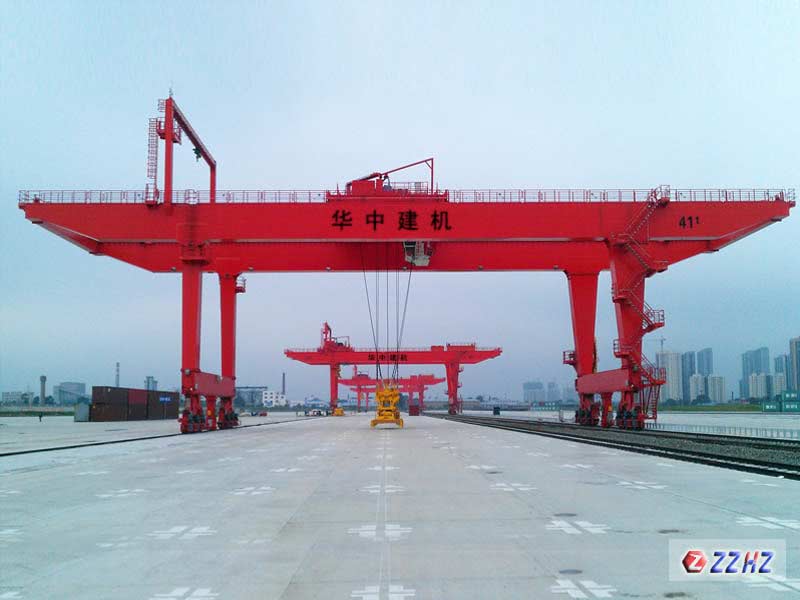

Rail Type Container Gantry Crane

1, The lifting and traveling speed is high.
2, With cantilevers on the both sides, the operation range is wider.

Product Model	MGJZ40	MGJZX40
Rated Lifting Weight(t)	40（Under Hoisting Device）	40（Under Hoisting Device）
Rail Torque(m)	35	35
Effective cantilever(m)	8.7（Both Sides）	8.7（Both Sides）
Lifting Height(m)	16.5	12.5
Crane Working Level	M7	M7
Max lifting Velocity(m/min)	15	15
Gantry Traveling Velocity(m/min)	Full Load≥35	Full Load≥40
Trolley Traveling Velocity(m/min)	Full Load≥55	Full Load≥50
Slewed Trolley Velocity(round per minute)	no	1.5～2
Max Wheel Pressure（In the Worst Working Condition ）(t)	≤20	≤25
Anti-shaking Device	Flexible Anti-shaking	Flexible Anti-shaking
Hoisting Device	20ft 、 40ft Fixed Lead Board Liquid-press Flexibility	20ft 、 40ft Fixed Lead Board Liquid-press Flexibility
Power Supply	3-Phase 4Line Lead Power Supply: 380v 50Hz	3-Phase 4Line Lead Power Supply: 380v 50Hz
Environment Temperature	-10℃ —+ 45℃	-10℃ —+ 45℃
Max Relative Humidity	90%	90%

product description

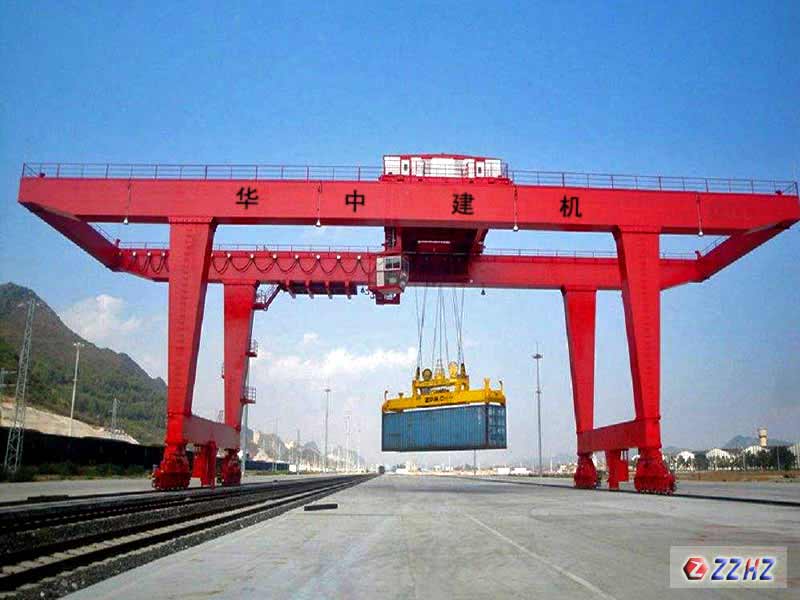

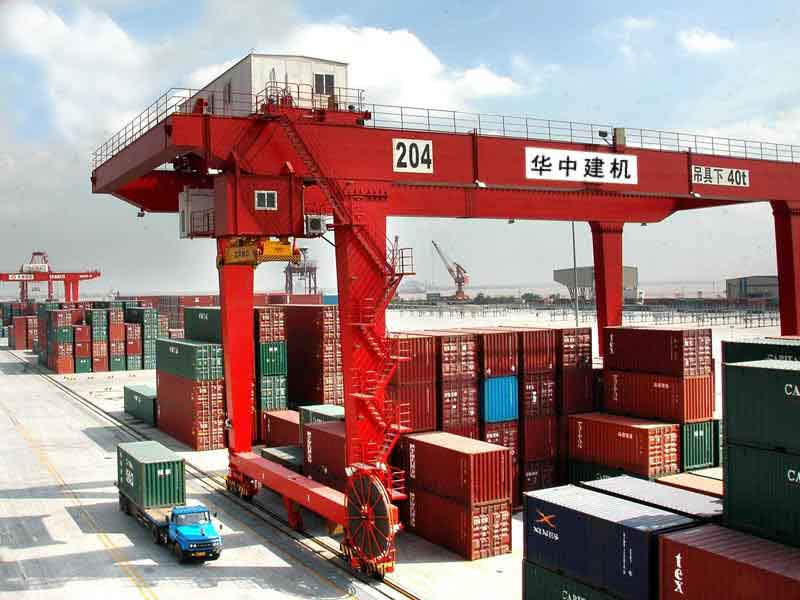

The rail type container gantry crane is mainly used for the loading and unloading, handling and stacking of the container in the railway container transshipment yard and large container storage yard. The crane travels along the laid rails.
