| Product Model | MUhz(60t×2+20t) | MUhz(300t×2+400t) |
|---|---|---|
| Lifting capacity(m) | 120 (≥11) | 600 (≥11) |
| Overturn capacity(t) | 120 | 600 |
| Span(m) | 40 | 180 |
| Lifting height above rail(m) | 50 | 80 |
| Lifting height below rail(m) | 6 | 12 |
| Carne moving speed with full load(m/min) | 0-30 | 0-35 |
| Carne moving speed without load(m/min) | 0-45 | 0-45 |
| Working level | A5 | A3 |
| Upper trolley lifting capacity(t) | 2×60 | 2×300 |
| Upper trolley lifting speed(m/min) | 0-5 | 0-3 |
| Upper trolley moving speed with full load(m/min) | 0-30 | 0-30 |
| Upper trolley moving speed without load(m/jmin) | 0-45 | 0-45 |
| Down trolley lifting capacity (t) | 120/20 | 4000/20 |
| Down trolley main hook lifting speed(m/min) | 0-5 | 0-3 |
| Down trolley auxiliary hook lifting speed(m/min) | 0-20 | 0-20 |
| Down trolley moving speed with full load(m/min) | 0-30 | 0-30 |
| Down trolley moving speed without load(m/min) | 0-45 | 0-45 |
| Wheel press(kn) | 340 | 938 |
| Power supply | AC 10KV 50HZ | AC 10KV 50HZ |

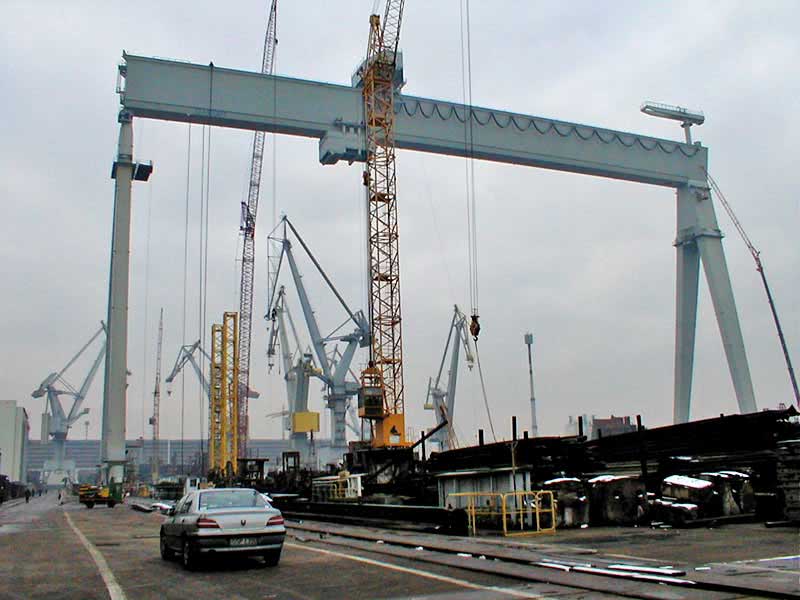

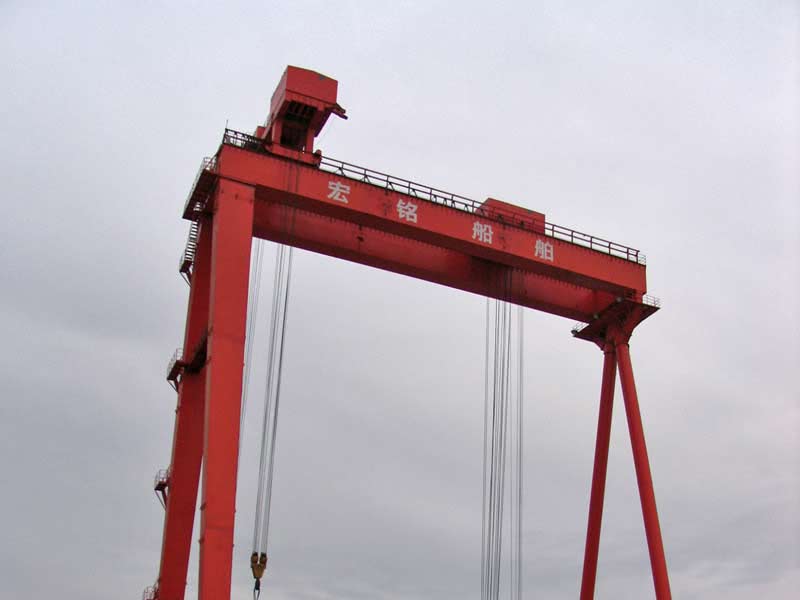

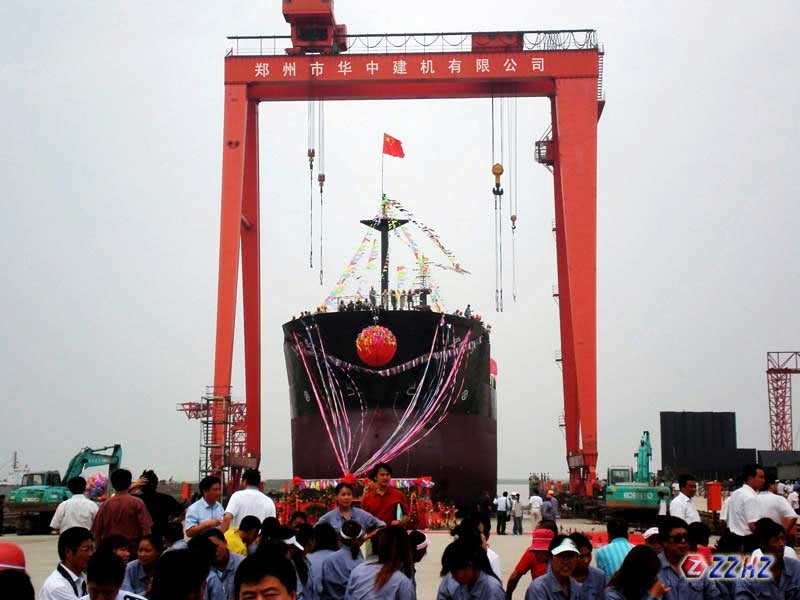

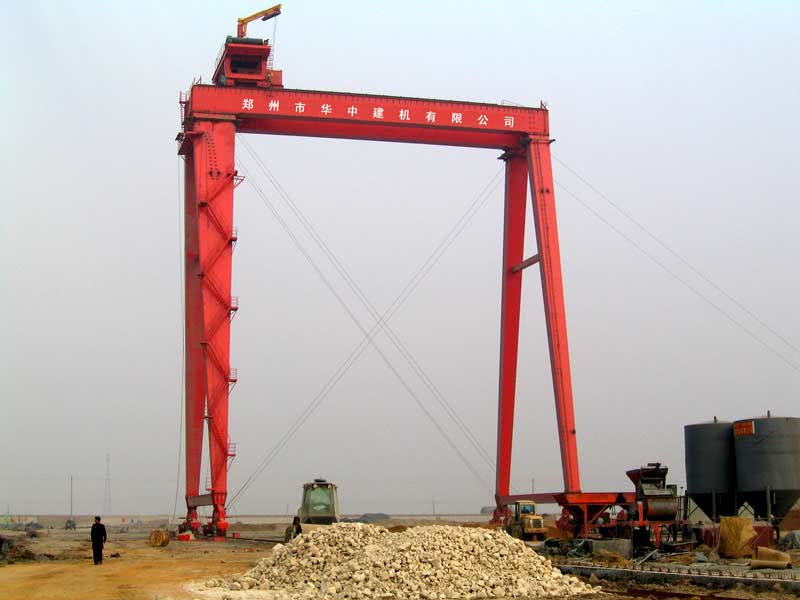

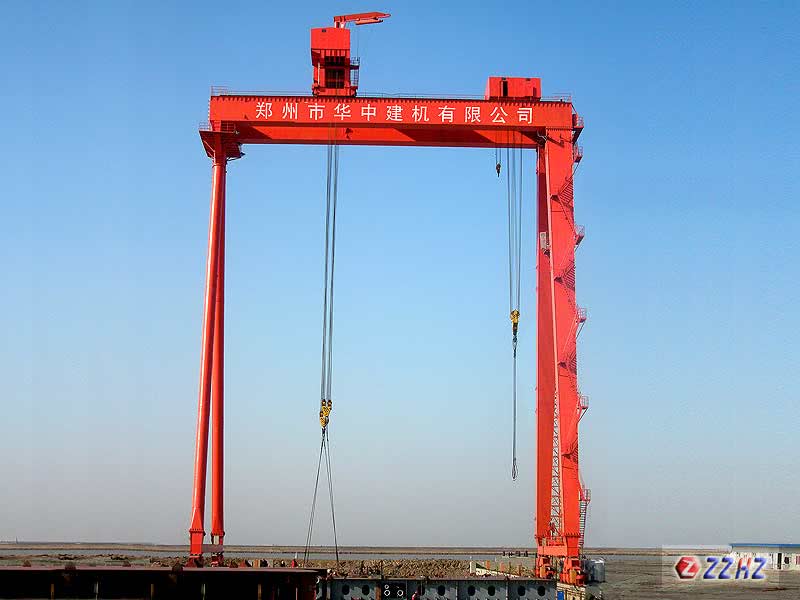

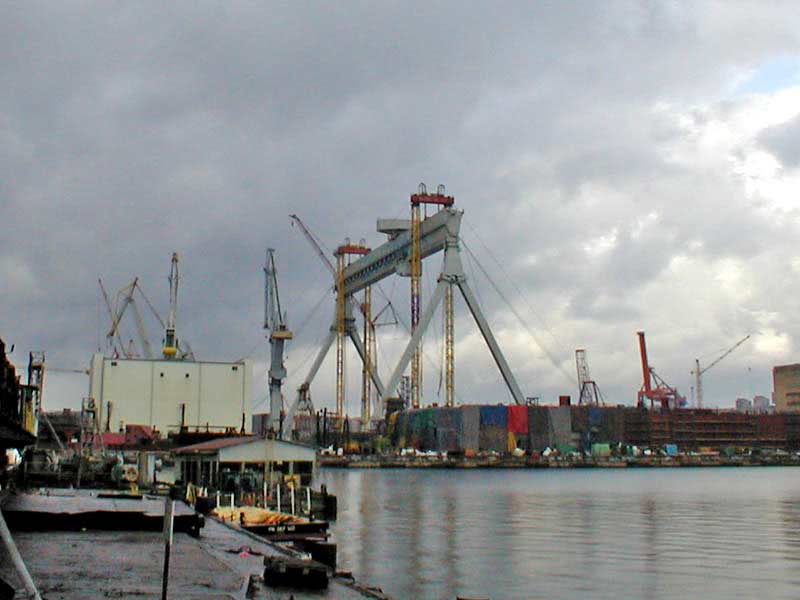

MUHZ Ship-building Gantry Crane can achieve the rotation of the lifting objects in the air.
1.The lifting trolley adopts the upper and down trolleys to meet the rotation in the air which is suitable for the ship-building factory.
2、The box type main girder is high lifting capacity and traveling speed.
Temperature: -25-+40℃
Click to download the drawing of Muhz Ship-buidling Gantry Crane
