MGhz Honeycomb Girder Gantry Crane

1, High strength on the main girder and wind-resistance performance.
2, Facilicate the construction sites changing.
3, Low cost on the installation and dismantling.

Product Model	MGhz20	MGhz30	MGhz60	MGhz80	MGhz90	MEhz50+50	MEhz80+80
Lifting Capacity (t)	20	30	60	80	90	50+50	80+80
Net Height（m)	7	7	7	7	7	12	40
Span(m)	18	18	18	18	18	24	20
Moving Speed of Crane（m/min)	8	8	8	8	8	10	20
Moving speed of Trolley（m/min)	6	6	6	6	6	8	8
Lifting Speed of Trolley(m/min)	1	1	1	1	1	1	1
Matched Power (kw)	16	21	55	60	60	60	80

product description

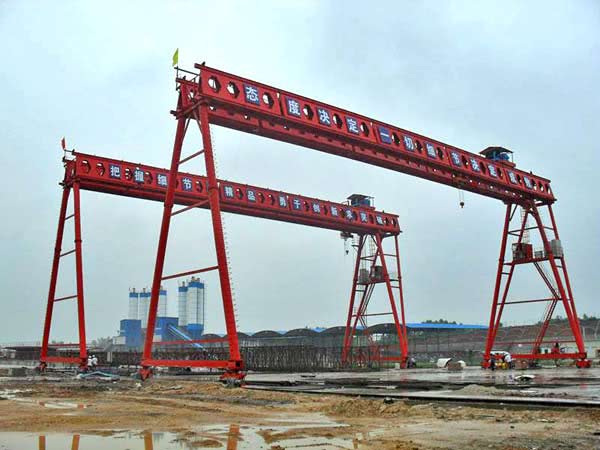

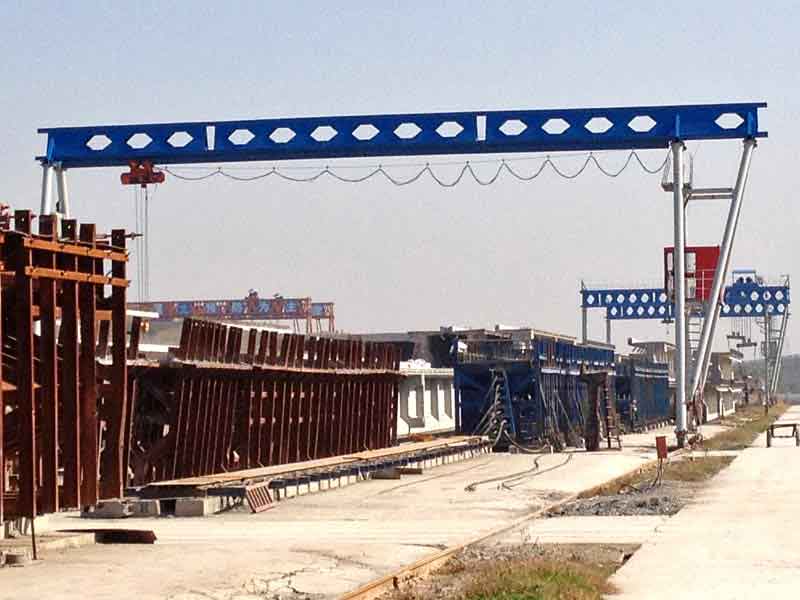

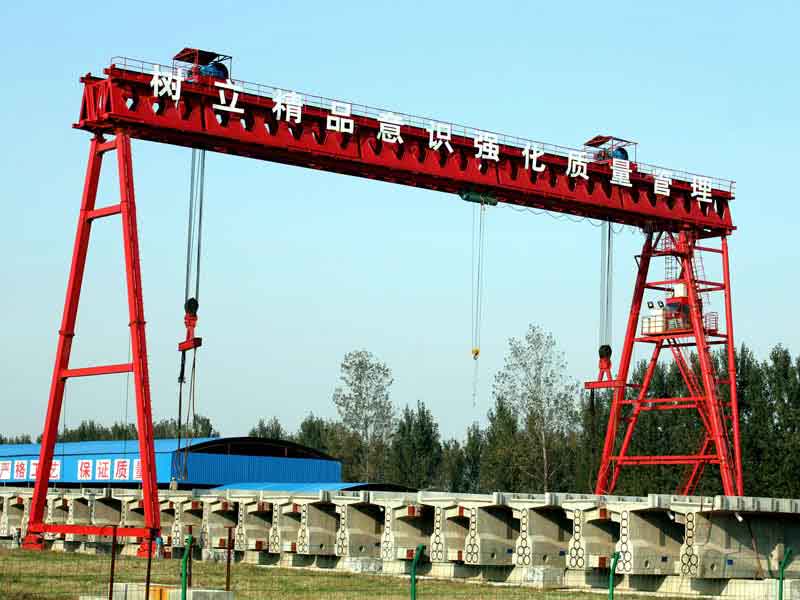

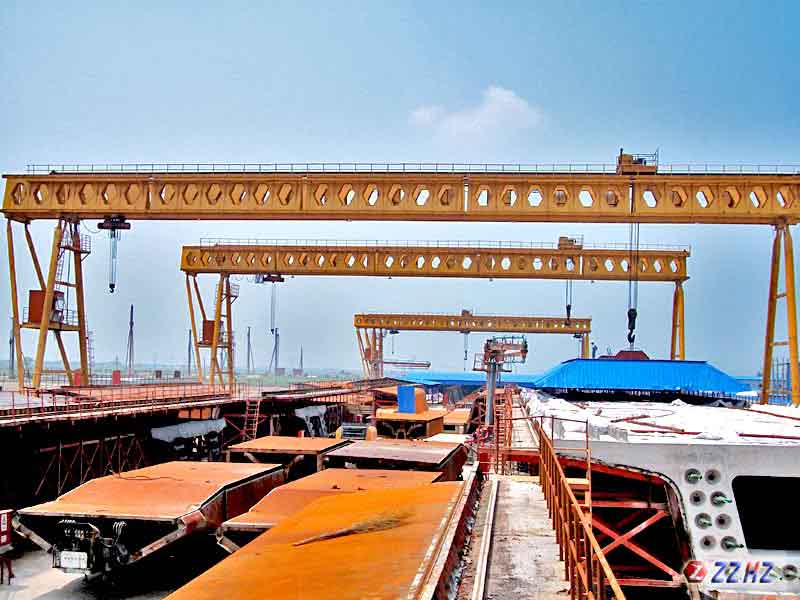

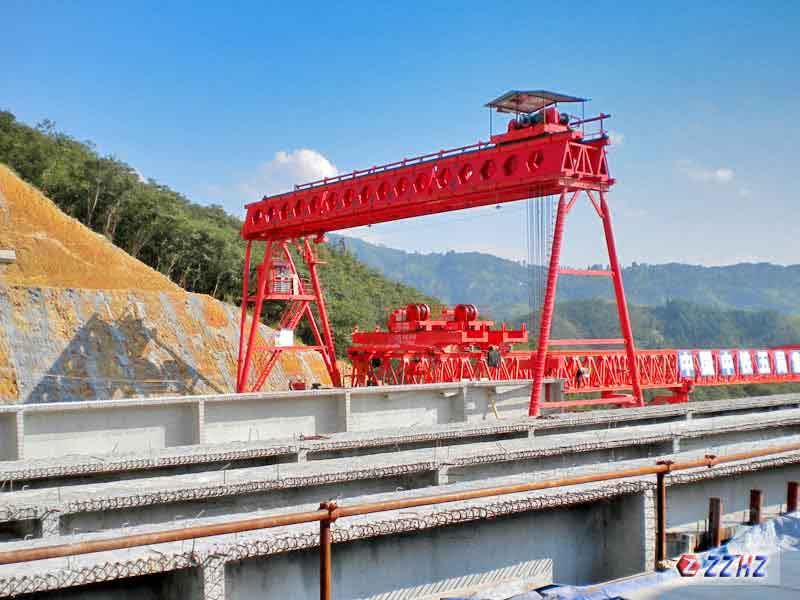

MGHZ Gantry Crane is designed according to the bridge construction. With the initiated honeycomb girder, it is mainly adopted in the concrete girder production plants.

Chinese Government

Product advantages

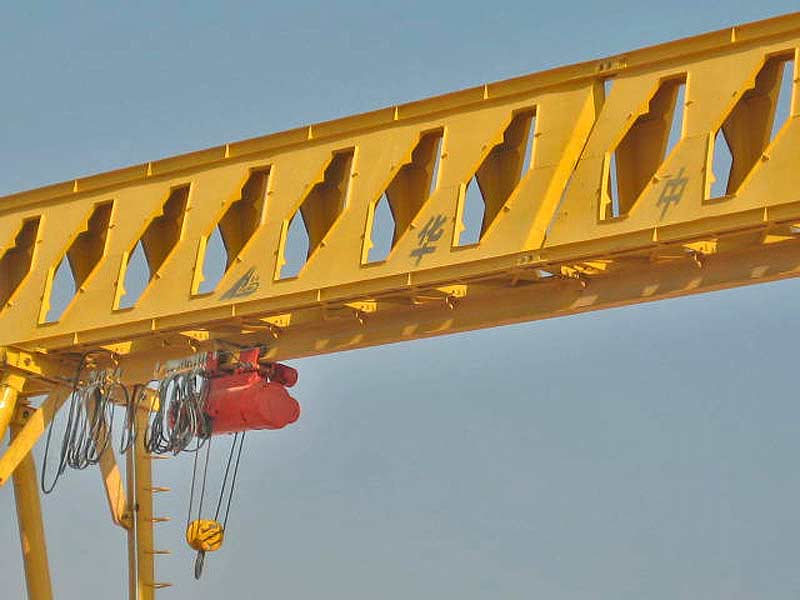

1, The honeycomb structure main girder, high strength and wind-resistance performance.
2, The pin connection method shorten the installation period.
3, The traveling and lifting speed is slow.
