| Product Model | LHD3.5t | LHD5t | LHD7t |
|---|---|---|---|
| Lifting Capacity (t) | 3.5 | 5 | 7 |
| Span(m) | 3.5 | 8 | 8 |
| Lifting Height(m) | 2.7-4.5 | 3.5-4.5 | 5 |
| Electric Hoist (t) | 3.5 | 5 | 7 |
| Lifting Speed (m/min) | 5.8 | 7 | 8 |
| Traveling Speed (m/min) | manual | 20 | 20 |
| Total Power (kw) | 3 | 8.5 | 11.3 |
| Self Weight (t) | 1.2 | 5 | 6 |

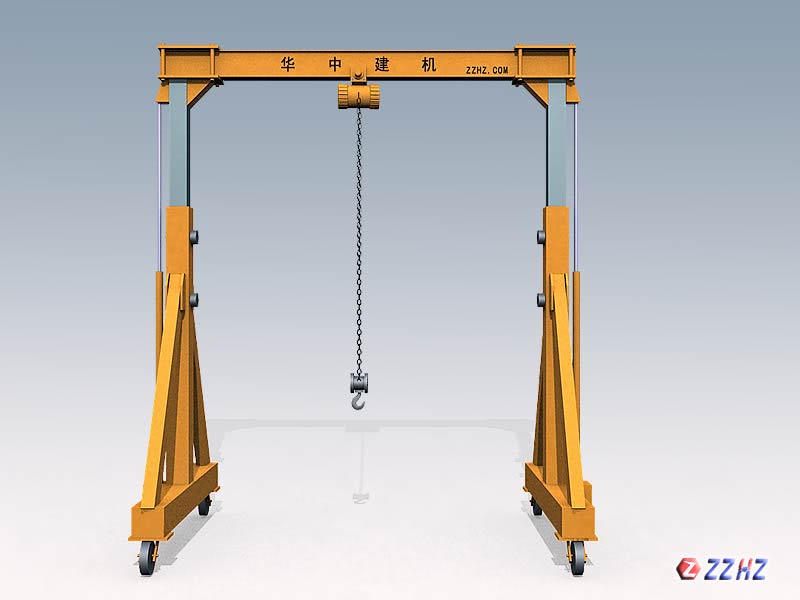

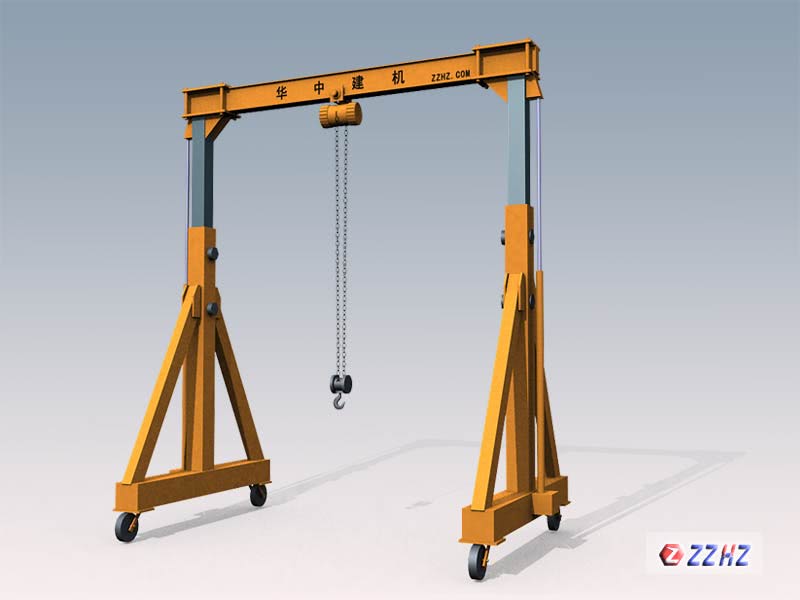

LHD Single Girder Gantry crane is the small lifting equipment which is suitable for factory and home operation.
1. Gantry crane lifting adopts the electric hoist.
2. Manually crane traveling.
3. The height of the support leg is adjusted by the jack.
Temperature: -25-+40℃
