| Product Model | PLB1200 | PLB1600 | PLB2400 |
|---|---|---|---|
| Weighting hopper volume(L) | 1200 | 1600 | 2400 |
| Storing hopper volume ( m3) | 6×3 | 6×3 | 10×3 |
| Period (s) | 60 | 60 | 60 |
| Dosing accuracy | ±2% | ±2% | ±2% |
| Max material radius(mm) | 80 | 80 | 80 |
| Power(KW) | 17.4 | 17.4 | 17.4 |
| Outline dimension (mm) | 9770×2500×3750 | 9770×2500×3750 | 13040×2500×4080 |
| Self weight(kg) | 6000 | 6500 | 7600 |
| Product Model | PLB1200s | PLB1600s | PLB2400s |
|---|---|---|---|
| Weighting-hopper volume(L) | 1200 | 1600 | 2400 |
| Storing-hopper volume ( m3) | 6×4 | 6×4 | 10×4 |
| Period (s) | 60 | 60 | 60 |
| Dosing accuracy | ±2% | ±2% | ±2% |
| Max material radius(mm) | 80 | 80 | 80 |
| Power(KW) | 20.4 | 20.4 | 20.4 |
| Out dimension (mm) | 9770×2500×3750 | 9770×2500×3750 | 13040×2500×4080 |
| Self weight(kg) | 8000 | 8000 | 8500 |

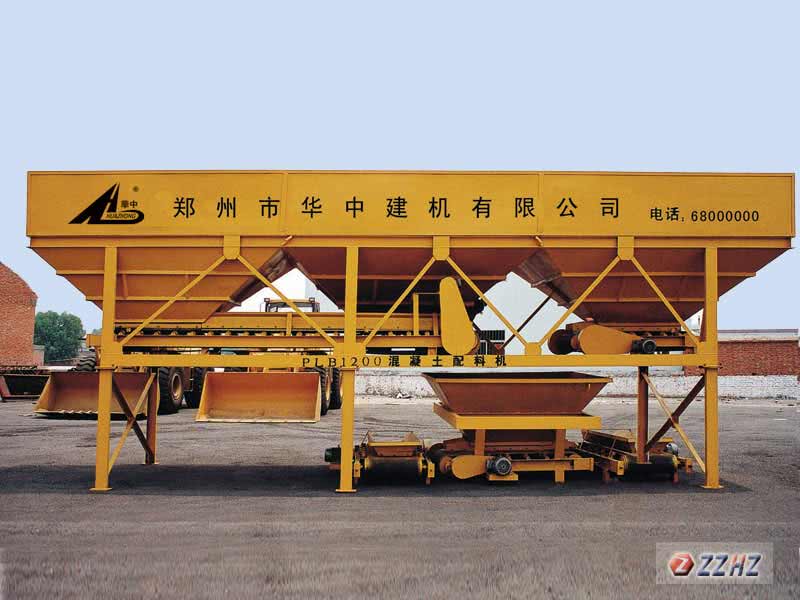

PLD Batching Machine is the equipment for the batching of stone and sand for the mixer. It is an ideal equipment for producing high quality concrete in a variety of construction projects and concrete prefabricated factories.
1. The batching machine is made into three bins or four bins according to the type of material.
2. Advanced electronic weighing system can automatically complete the dynamic weighing and correction;
