| Product Model | JZM500 | JZM750 | JZM1000 | JZM1500 |
|---|---|---|---|---|
| Feeding Volume (L) | 800 | 1200 | 1600 | 2400 |
| Discharge Capacity（L） | 500 | 750 | 1000 | 1500 |
| Production Capacity （m3/h) | 15 | 22.5 | 30 | 45 |
| Discharge Height (m) | 1.7 | 1.7 | 1.8 | 2 |
| The Max Diameter of Concrete(mm) | 80 | 80 | 100 | 120 |
| Matched Power （kw) | 16.25 | 23.25 | 36.1 | 46.1 |
| Overall Dimensions(mm) | 5200×1800×5600 | 6150×2050 ×6280 | 6500×2400×6500 | 7500×2600×8000 |
| Total Mass(kg) | 4000 | 4900 | 5800 | 7800 |
JS mixer adopts two stirring shaft rotation, makes cement, stones mixing in the equipment. With the high quality concrete, it is the most widely used concrete mixing equipment at the moment.

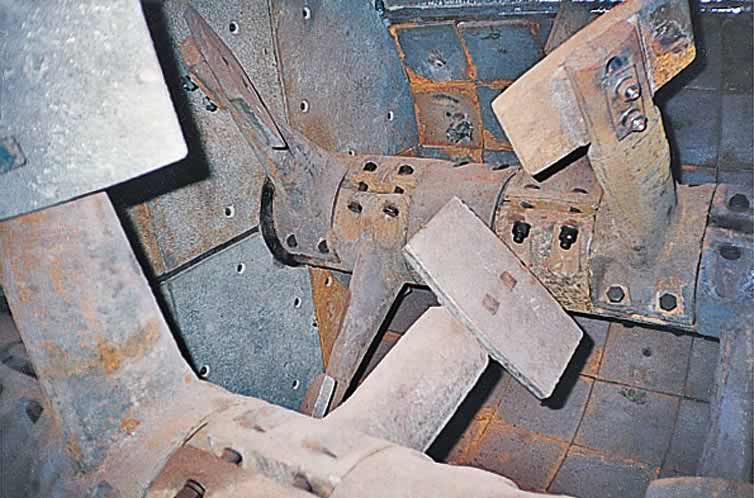

1. The blade of the mixer is made of high strength material, strong abrasion resistance;
2. Adopt the special protection design to avoid broken shaft phenomenon on the mixing shaft;
3. Multi-angle mixing arm design makes the mixing well-distributed.
4. The reducer box adopts the upper and lower structure which is easy to maintain.
