| Product Model | 2HZS120 | 2HZS180 | 2HZS240 |
|---|---|---|---|
| Type of Mixer | JS1000×2 | JS1500×2 | JS2000×2 |
| Height of Discharge (m) | 3.8 | 3.8 | 3.8 |
| Feeding Type | Belt Conveyer | Belt Conveyer | Belt Conveyer |
| Batching Machine | PLB1600×2 | PLB2400×2 | PLB3200×2 |
| Cement Bin | 100T×4 | 150T×4 | 150T×6 |
| Max. Diameter of Aggregate (mm) | 60/80 | 80/100 | 100/120 |
| Measuring Accuracy of Aggregate | ±2% | ±2% | ±2% |
| Measuring Accuracy of Concrete and Water | ±1% | ±1% | ±1% |
| Measuring Accuracy of Additive | ±1% | ±1% | ±1% |
| Total Power ( (kw) | 220 | 364 | 420 |

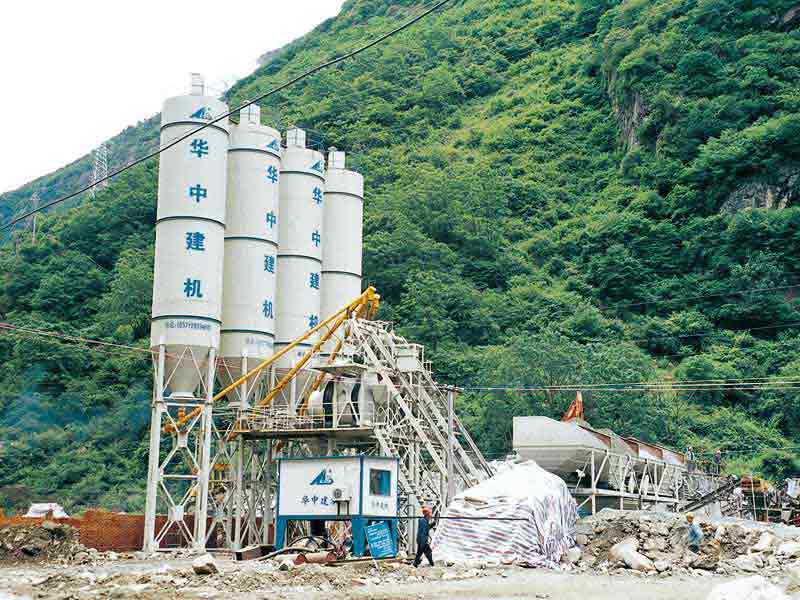

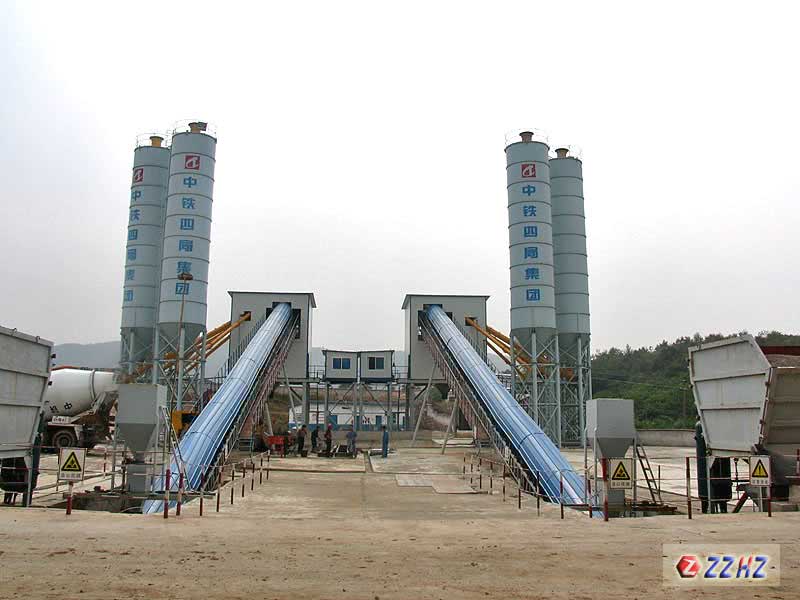

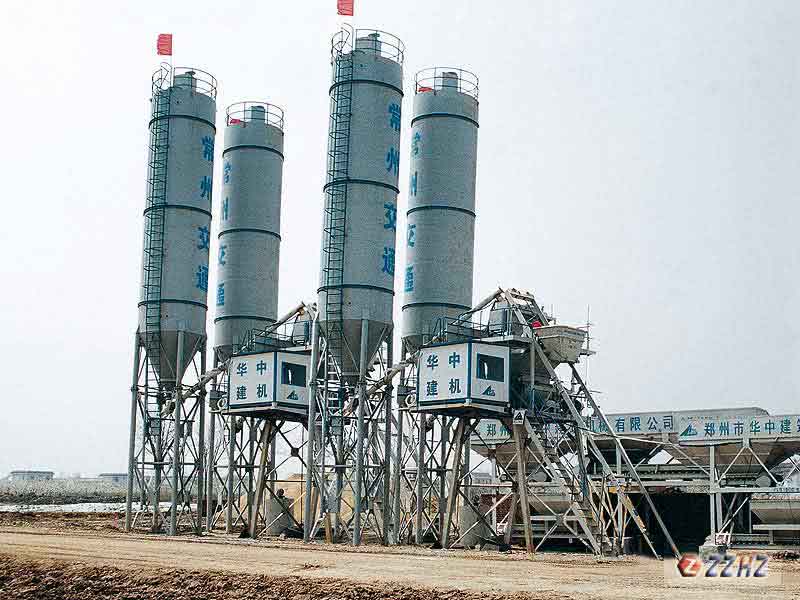

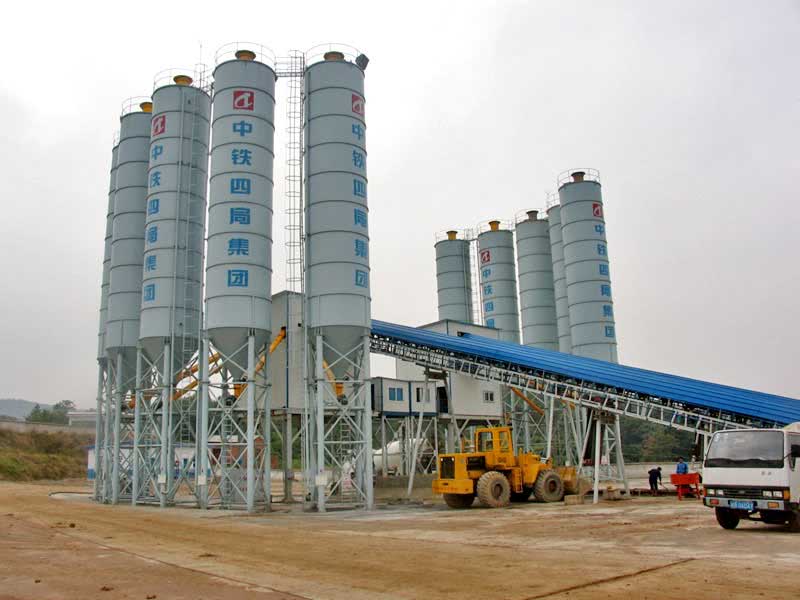

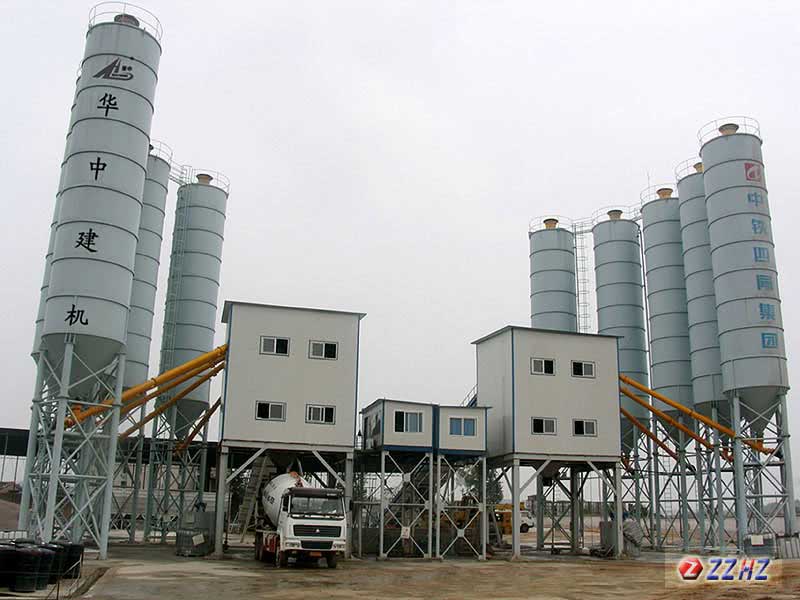

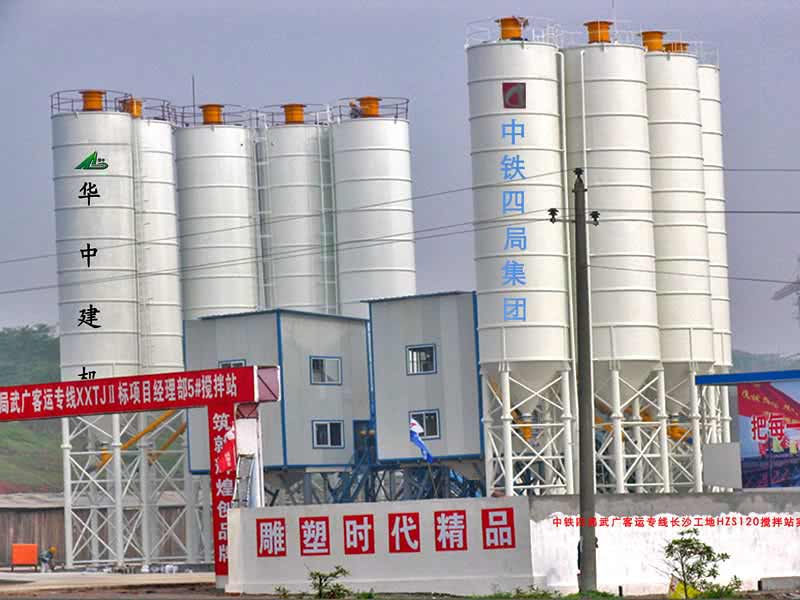

HZS Batching Plant contains JS mixer, PLD batching machine, cement silo, screw conveyor, conveyor belt, computer control room. The various materials are metered and stirred to produce qualified concrete. It is widely used in large and medium-sized construction, road and bridge and the production of concrete products in prefabricated factories.
1. The production efficiency is high, mixing period is short.
2. Control system adopts computer display.
3. Dynamic monitoring on the operation of every equipment.
