| Product Model | |||
|---|---|---|---|
| HZQF30/120 | HZQF40/160 | HZQF50/200 | |
| Span（m） | 30 | 40 | 50 |
| Rated Lifting Capacity（T） | 120 | 160 | 200 |
| Crane Longitudinal Moving Speed （m/min） | 4.6 | 4.6 | 4.0 |
| Crane Transverse Moving Speed （m/min） | 4.6 | 3.31 | 2.87 |
| Trolley Longitudinal Moving Speed （m/min） | 4.6 | 4.6 | 1 |
| Trolley Transverse Moving Speed （m/min） | 1.7 | 1.4 | 1.8 |
| Rated Power（KW） | 85 | 95 | 140 |
| Self Weight（T） | 115 | 165 | 225 |

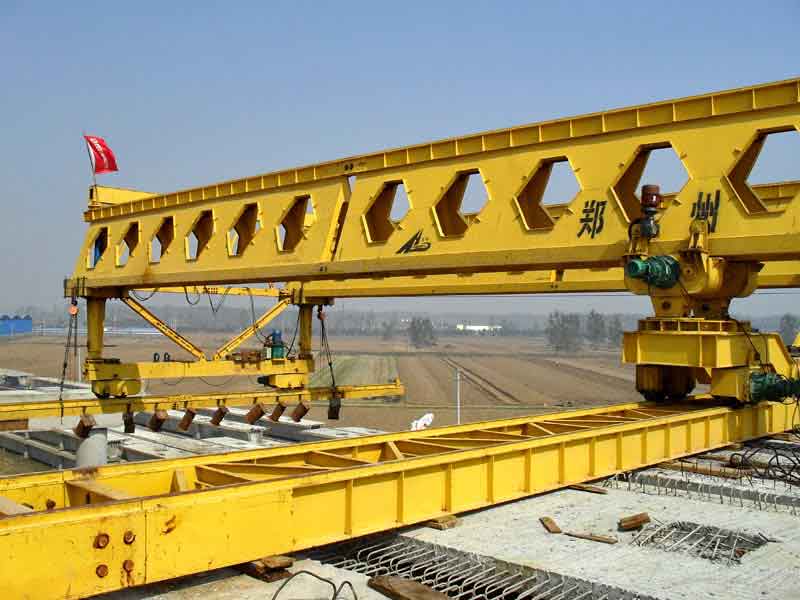

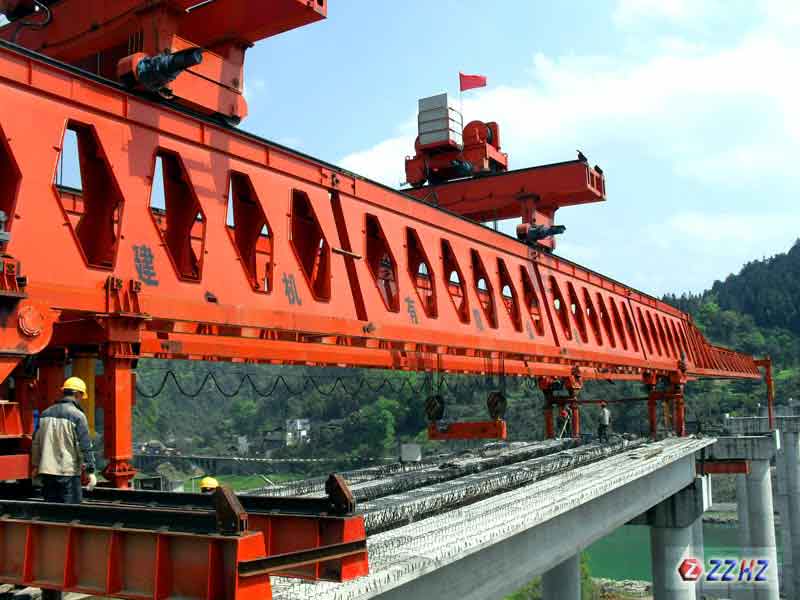

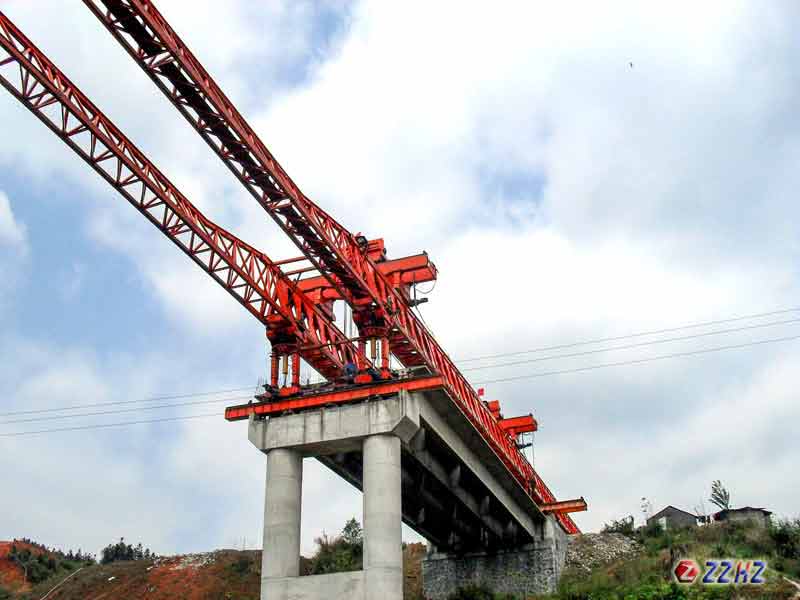

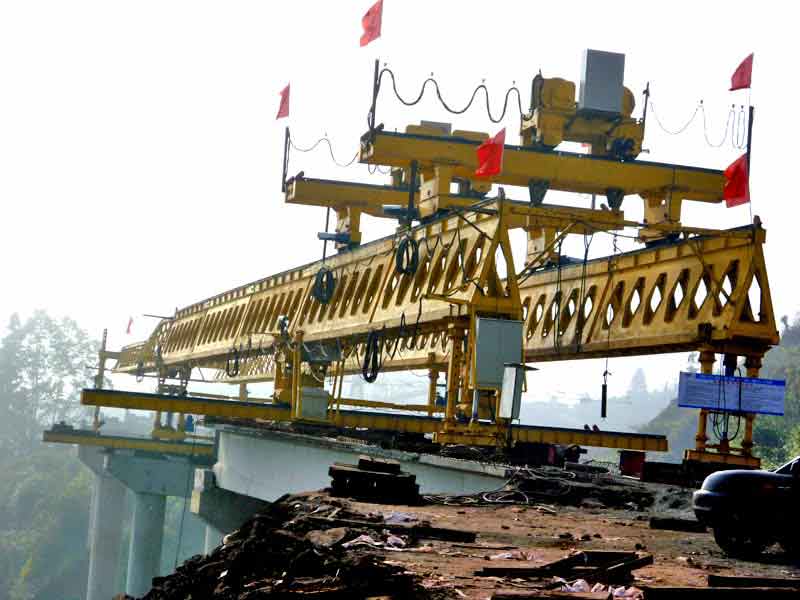

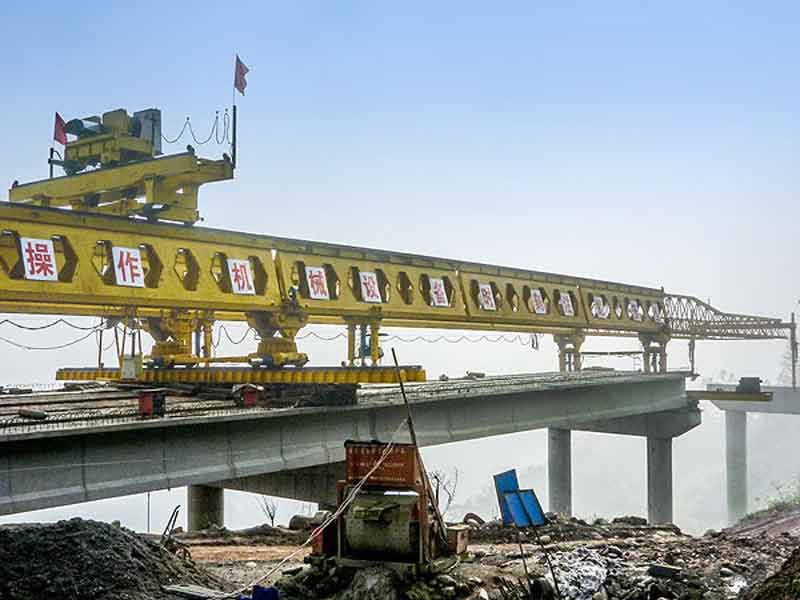

HZQF bridge girder launcher is professional equipment for the concrete girders in the highway and high-speed highway projects. Adopting the specail girder carrier, it applies to the projects with more than 10km transportation distance.

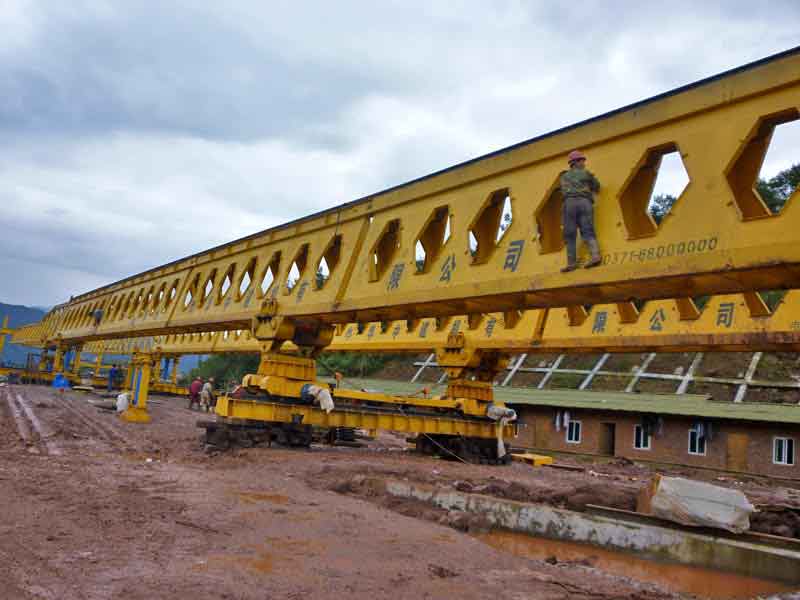

1,Adopting the initiated honeycomb girder structure with the product patent, the bridge girder launcher is light self weight, strong loading capacity and high wind-resistance.
2, The main girder is connected by the pins which is convenient to installation and dismantling.
3, During the bridge girder launcher travels forward, the main girder moves along the middle support leg.
Temperature：-20°C-50°C Wind：≤Grade 8 during girder erection; ≤Grade 6 during pier-crossing.
Click to download the drawing of Walking-type bridge girder launcher
