HZQD900 Bridge Erecting Crane

1.The self weight is light and cost is low.
2.The simple rotation of the support leg makes it traveling in the tunnel.
3.The simple operation can achieve the 24m and 32m spans bridge construction.
4. Low fuel consumption.
5.3 pieces of girders every day

Product Model
Product Model	HZQD500	HZQD900
Rated lifting capacity	500t	900t
Max dimension for installed girder	30m×10.6m×1.8m	32m、24m double lines equal span and shift span box girder
Girder lifting method	4-points lifting, 3-points balancing	4-points lifting, 3-points balancing
Beam launcher moving speed	0-3m/min	0-3m/min
Beam launching moving way	walking by itself	walking by itself
Lifting trolley longitudinal moving speed	0-3m/min(heavy load),0-6m/min( empty load)	0-3m/min(heavy load),0-5m/min( empty load)
Lifting trolley lifting speed	0-0.5m/min(heavy load),0-1m/min( empty load)	0-0.5m/min(heavy load),0-1m/min( empty load)
Max lifting height of lifting trolley	6m	7m
Girder lateral fine adjustment distance	±200mm	±215mm
Girder fine adjustment speed	0-1m/min	0-1m/min
Min curved radius	1500m	Rmin≥2500m
Applicable gradient	longitudinal gradient 30%, lateral gradient 40%	longitudinal gradient 20‰, lateral gradient 4%
Power	200kw	300kw
Control mode	mechanic-electric-hydraulic integration system	mechanic-electric-hydraulic integration system

product description

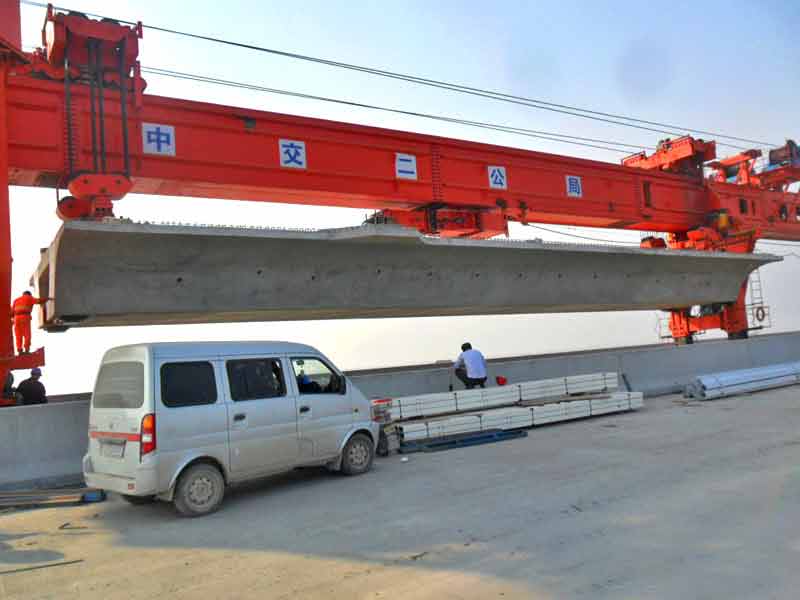

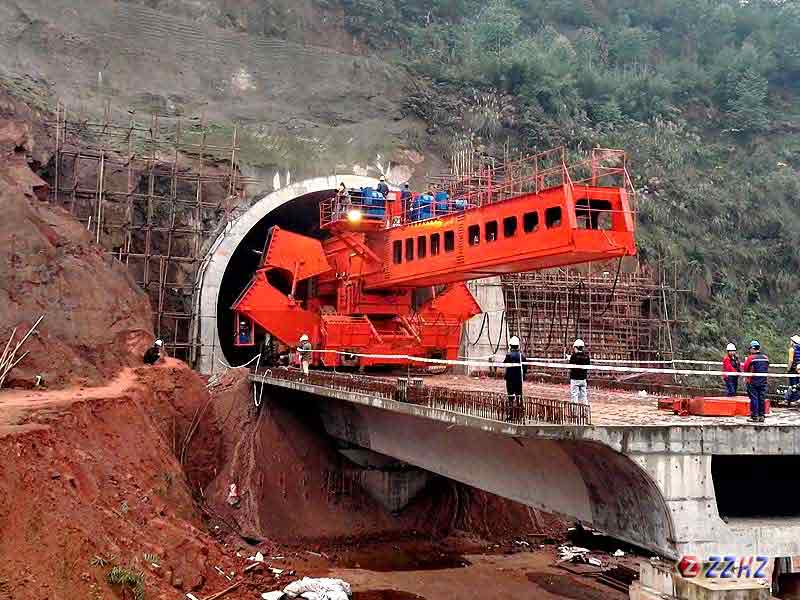

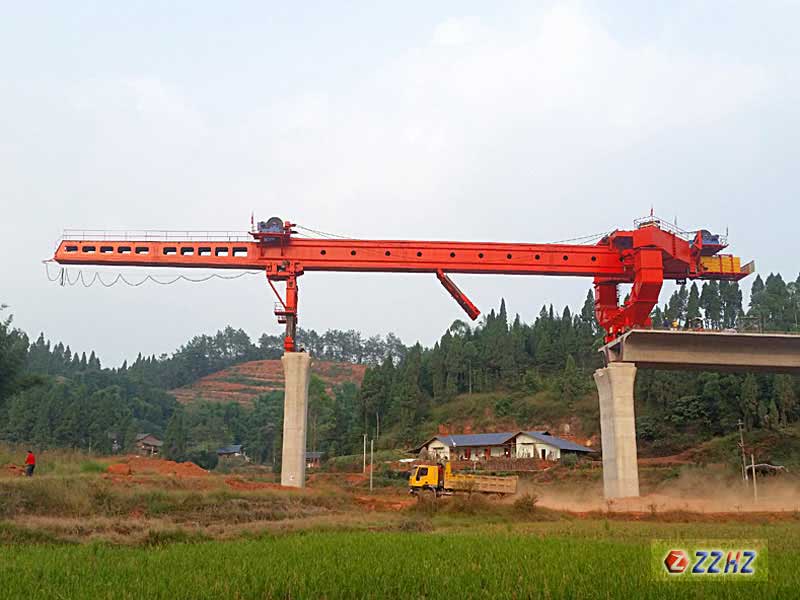

HZQD900 bridge girder launcher is the high-speed railway bridge girder launcher which is applied to the project construction in the mountain and plain areas. It can travel in the tunnel without dismantling. The girder transportation adopts the independent girder carrier and suitable for the construction within 30km distance.

Chinese Government

Product advantages

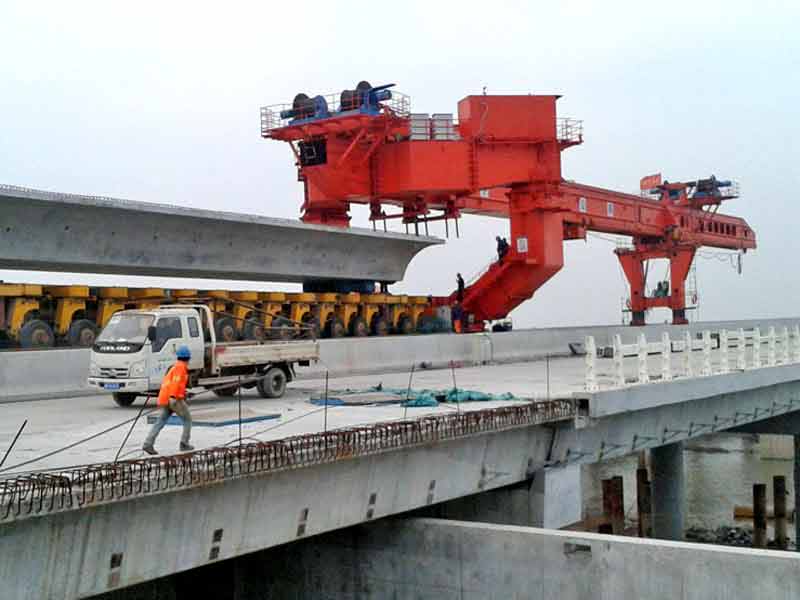

1,The bridge girder launcher and girder carrier work independently, the girder transportation speed is high and save the fuel.

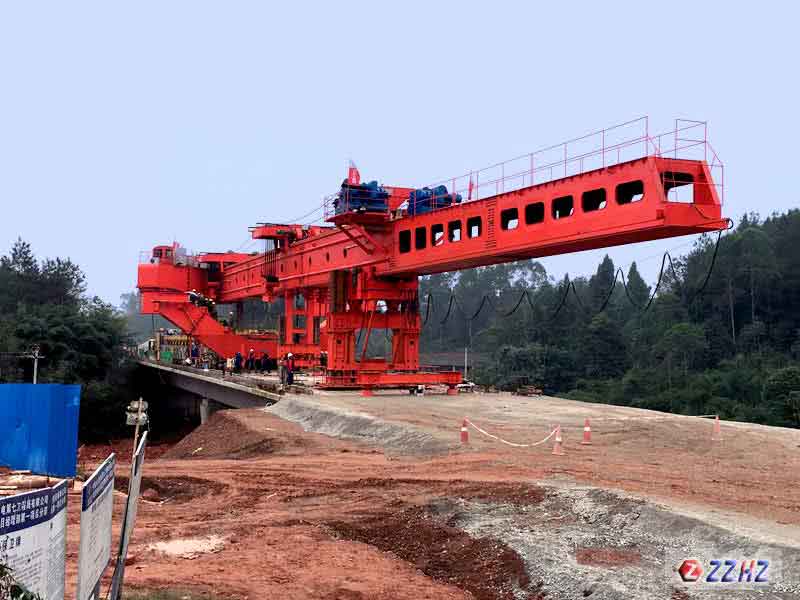

2, The "O" type support leg is adopted in the rear part of the bridge girder launcher, the structure strength is high.

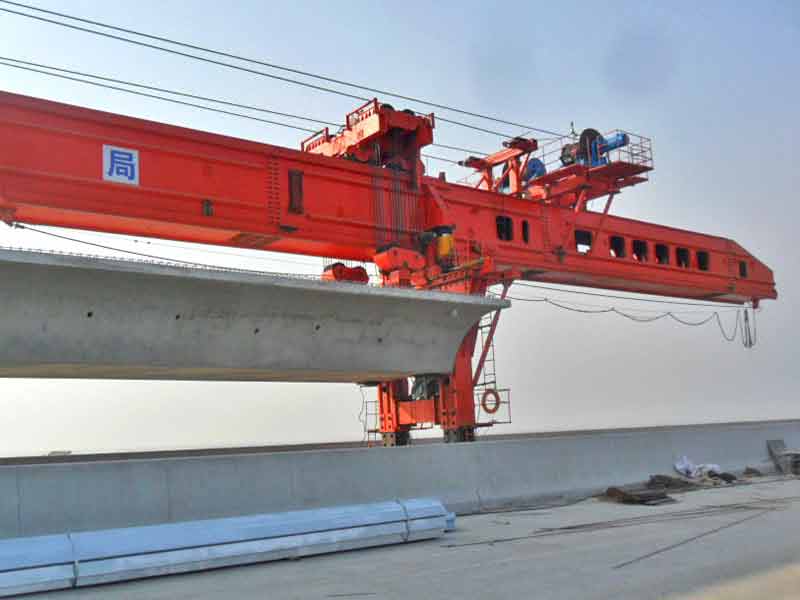

3, During the bridge girder launcher travels forward, the main girder moves along the middle support leg.
