| Product Model | MSS650 | MSS1650 |
|---|---|---|
| Span（m） | 30 | 50 |
| Girder-casting Weight(one time) (t) | 650 | 1650 |
| Applicable Longitudinal/transverse Gradient | 0.2-2.5％ | 0.2-2.5％ |
| Longitudinal Speed （m/min） | 0.5 | 0.5 |
| Max Anti-force At Working （Kn） | 3160 | 8270 |
| Max Anti-force At moving (Kn) | 1030 | 2890 |
| Self Weight （t） | 300 | 660 |

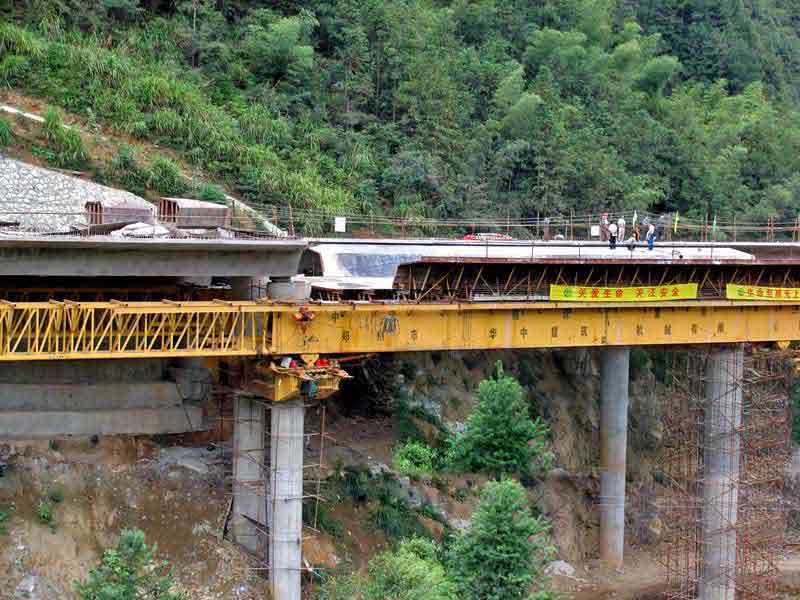

MSS30/660 Bridge Creating Machine is designed for meeting the demands of 30m continuous concrete box-girder construction. It is a bridge construction machine whose construction method is that installing on the piers and field casting. The main characteristics are high rigid for main girder, convenient bracing installation, variable piers.
● When the machine counters the conditions like: the continuous girder or transferring, it is equipped with the functions of counterweight mechanism and overall opening and closing.
● The traveling method is walking hydraulic push-put, the support leg rearrangement needs the auxiliary facility.
● The machine is double main girder, supporting with the corbel and piers.
● The max. anti-force of the supporting beam is 316N at working.
● The construction speed : 12 days for two piers ( later it will be 11 days for two piers).
● The max. anti-support force of support roll while traveling: 103N.
● Applicable longitudinal slope/lateral slope: 2%/2%.
● The deflection of main girder: 1/700
Temperature: -25-+40℃
Click to download the drawing of Downstroke Movable Support System
